NSK 22322EAE4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
22322EAE4

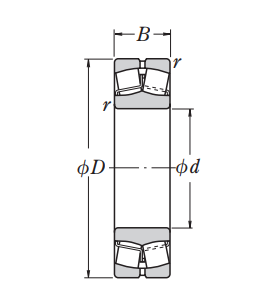

Boundary Dimensions
d
110
mm
Bore diameter
D
240
mm
Outside diameter
B
80
mm
Width
r (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Cr
1030000
N
Basic dynamic load rating
C0r
1120000
N
Basic static load rating
Speeds
Mechanical (forced-circulation oil)
1900
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
1400
min-1
Grease lubrication
Oil (Oil-bath)
1900
min-1
Oil-bath lubrication

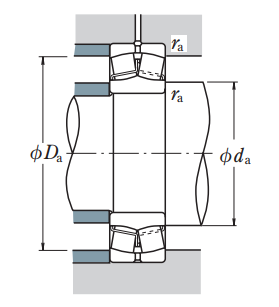

da (min.)
124
mm
Diameter of shaft abutment
da (max.)
145
mm
Diameter of shaft abutment
Da (min.)
206
mm
Diameter of housing abutment
Da (max.)
226
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.33
Constant
Y2
3.1
Axial load Factors
Y3
2.1
Axial load Factors
Y0
2
Axial load Factors
