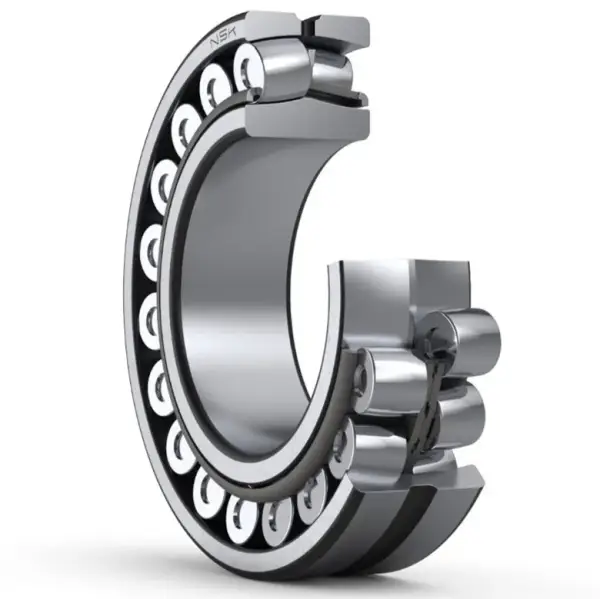

NSK 22324EAKE4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
22324EAKE4

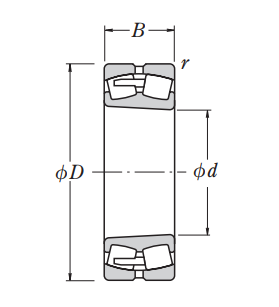

Boundary Dimensions
d
120
mm
Bore diameter
D
260
mm
Outside diameter
B
86
mm
Width
r (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Cr
1190000
N
Basic dynamic load rating
C0r
1320000
N
Basic static load rating
Speeds
Mechanical (forced-circulation oil)
1400
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
1100
min-1
Grease lubrication
Oil (Oil-bath)
1400
min-1
Oil-bath lubrication

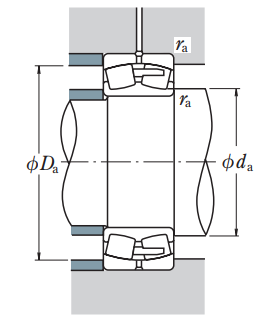

da (min.)
134
mm
Diameter of shaft abutment
da (max.)
157
mm
Diameter of shaft abutment
Da (min.)
222
mm
Diameter of housing abutment
Da (max.)
246
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.32
Constant
Y2
3.1
Axial load Factors
Y3
2.1
Axial load Factors
Y0
2
Axial load Factors
