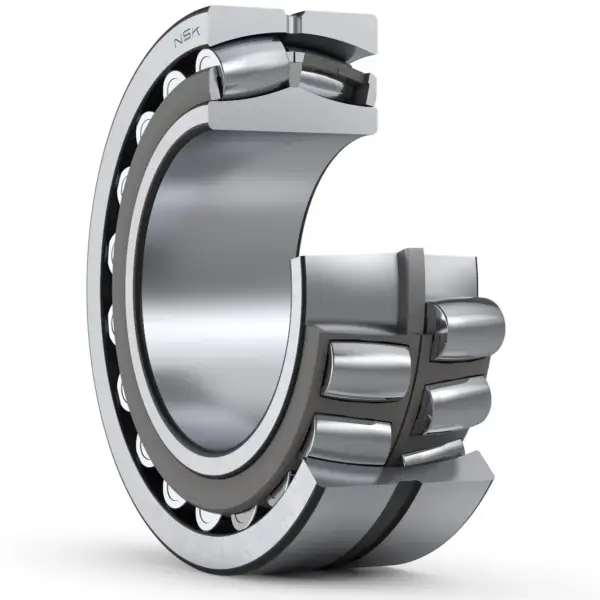

NSK 22326CE4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
22326CE4

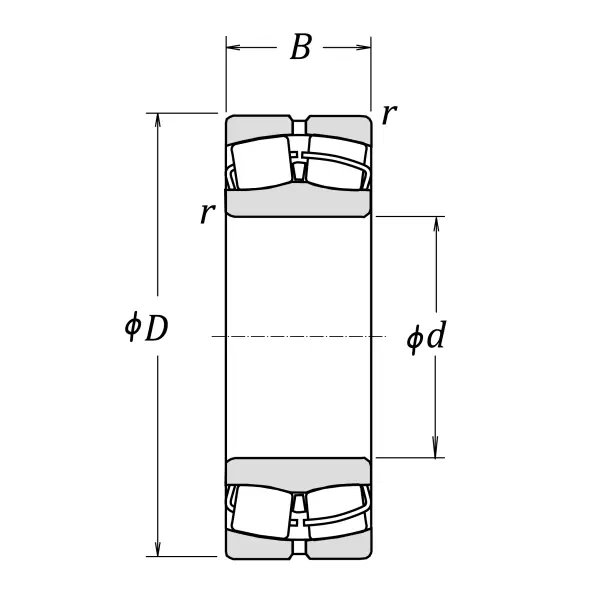

Boundary Dimensions
d
130
mm
Bore diameter
D
280
mm
Outside diameter
B
93
mm
Width
r (min.)
4
mm
Chamfer dimension
Basic Load Ratings
Cr
1240000
N
Basic dynamic load rating
C0r
1350000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
1900
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
2600
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
1300
min-1
Grease lubrication
Oil (Oil-bath)
1600
min-1
Oil-bath lubrication
da (min.)
148
mm
Diameter of shaft abutment
da (max.)
166
mm
Diameter of shaft abutment
Da (min.)
236
mm
Diameter of housing abutment
Da (max.)
262
mm
Diameter of housing abutment
ra (max.)
3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.34
Constant
Y2
2.9
Axial load Factors
Y3
2
Axial load Factors
Y0
1.9
Axial load Factors
