NSK 23012CKE4

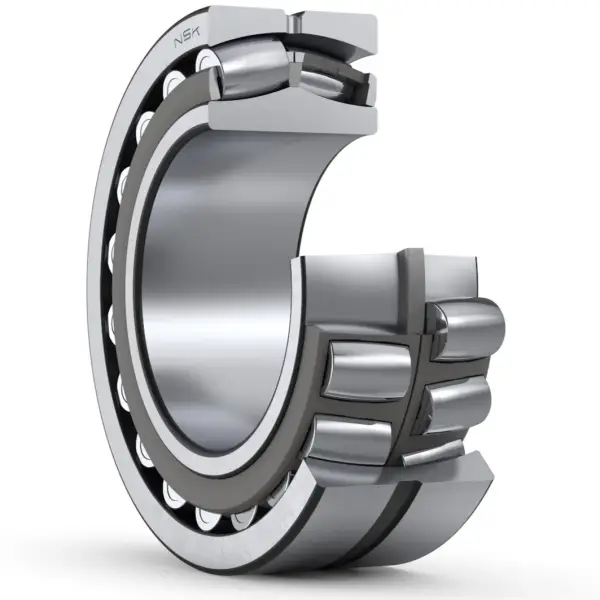

Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
23012CKE4

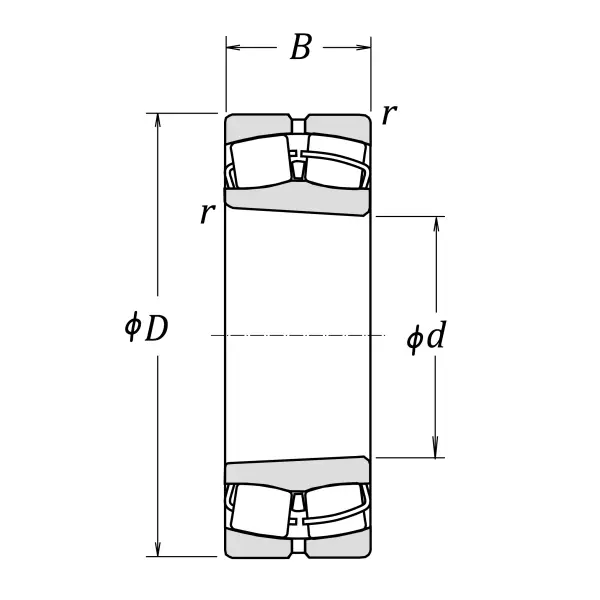

Boundary Dimensions
d
60
mm
Bore diameter
D
95
mm
Outside diameter
B
26
mm
Width
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
98500
N
Basic dynamic load rating
C0r
141000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
4800
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
3600
min-1
Grease lubrication
Oil (Oil-bath)
4500
min-1
Oil-bath lubrication

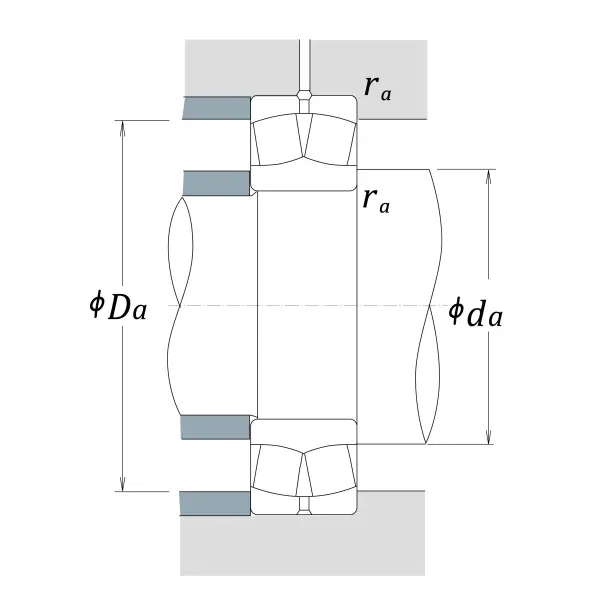

da (min.)
67
mm
Diameter of shaft abutment
da (max.)
68
mm
Diameter of shaft abutment
Da (min.)
85
mm
Diameter of housing abutment
Da (max.)
88
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.26
Constant
Y2
3.9
Axial load Factors
Y3
2.6
Axial load Factors
Y0
2.5
Axial load Factors
