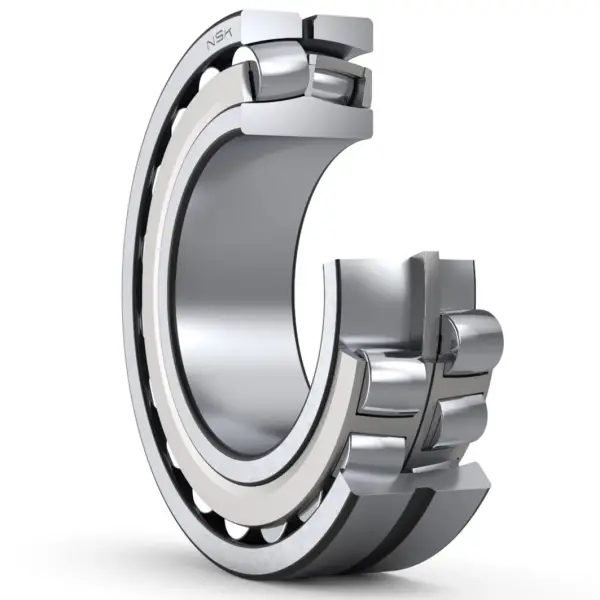

NSK 23022CDKE4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
23022CDKE4
Boundary Dimensions
d
110
mm
Bore diameter
D
170
mm
Outside diameter
B
45
mm
Width
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Cr
293000
N
Basic dynamic load rating
C0r
465000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
3200
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
2000
min-1
Grease lubrication
Oil (Oil-bath)
2400
min-1
Oil-bath lubrication
da (min.)
120
mm
Diameter of shaft abutment
da (max.)
124
mm
Diameter of shaft abutment
Da (min.)
153
mm
Diameter of housing abutment
Da (max.)
160
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.24
Constant
Y2
4.2
Axial load Factors
Y3
2.8
Axial load Factors
Y0
2.8
Axial load Factors
