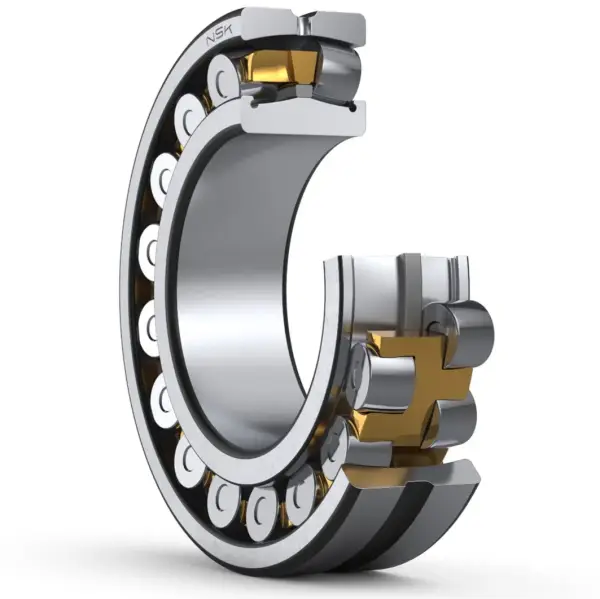

NSK 23024CAME4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
23024CAME4

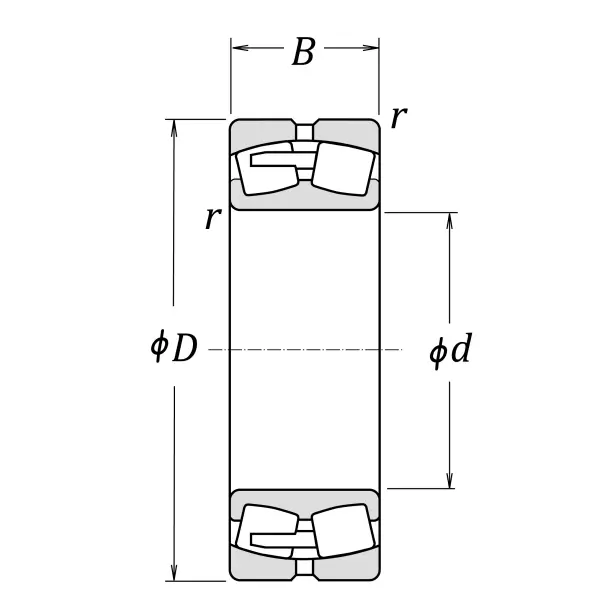

Boundary Dimensions
d
120
mm
Bore diameter
D
180
mm
Outside diameter
B
46
mm
Width
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Cr
395000
N
Basic dynamic load rating
C0r
525000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
3200
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
4500
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
1800
min-1
Grease lubrication
Oil (Oil-bath)
2200
min-1
Oil-bath lubrication
da (min.)
130
mm
Diameter of shaft abutment
Da (min.)
163
mm
Diameter of housing abutment
Da (max.)
170
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.22
Constant
Y2
4.5
Axial load Factors
Y3
3
Axial load Factors
Y0
2.9
Axial load Factors
