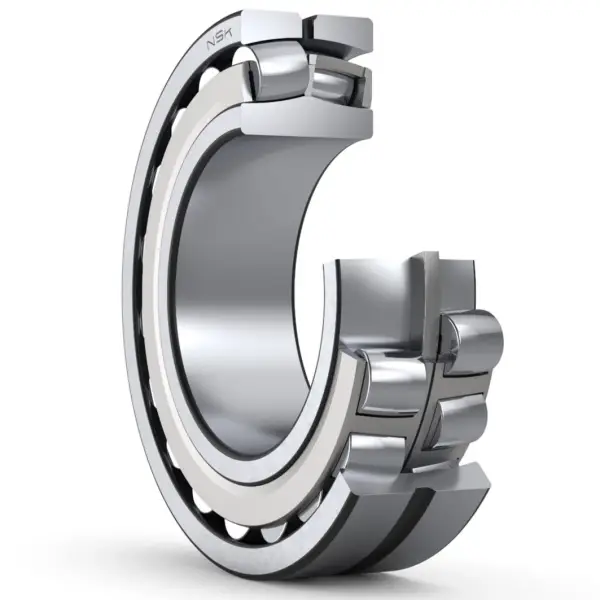

NSK 23034CDE4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
23034CDE4
Boundary Dimensions
d
170
mm
Bore diameter
D
260
mm
Outside diameter
B
67
mm
Width
r (min.)
2.1
mm
Chamfer dimension
Basic Load Ratings
Cr
795000
N
Basic dynamic load rating
C0r
1090000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
2200
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
3000
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
1200
min-1
Grease lubrication
Oil (Oil-bath)
1600
min-1
Oil-bath lubrication
da (min.)
182
mm
Diameter of shaft abutment
da (max.)
191
mm
Diameter of shaft abutment
Da (min.)
233
mm
Diameter of housing abutment
Da (max.)
248
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.23
Constant
Y2
4.3
Axial load Factors
Y3
2.9
Axial load Factors
Y0
2.8
Axial load Factors
