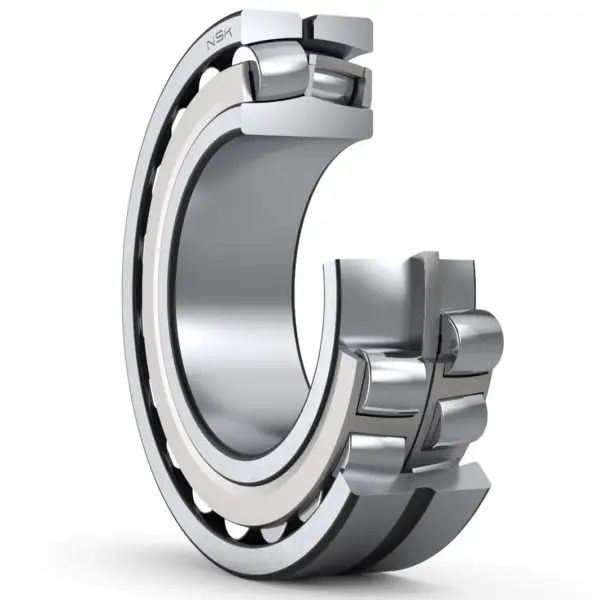

NSK 23036CDKE4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
23036CDKE4
Boundary Dimensions
d
180
mm
Bore diameter
D
280
mm
Outside diameter
B
74
mm
Width
r (min.)
2.1
mm
Chamfer dimension
Basic Load Ratings
Cr
935000
N
Basic dynamic load rating
C0r
1270000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
2000
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
2800
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
1200
min-1
Grease lubrication
Oil (Oil-bath)
1400
min-1
Oil-bath lubrication
da (min.)
192
mm
Diameter of shaft abutment
da (max.)
202
mm
Diameter of shaft abutment
Da (min.)
249
mm
Diameter of housing abutment
Da (max.)
268
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.24
Constant
Y2
4.2
Axial load Factors
Y3
2.8
Axial load Factors
Y0
2.8
Axial load Factors
