NSK 232/600CAMKE4

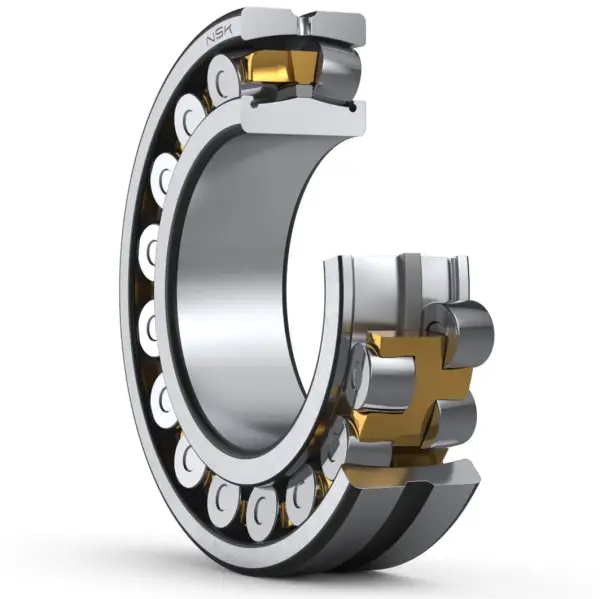

Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
232/600CAMKE4
Boundary Dimensions
d
600
mm
Bore diameter
D
1090
mm
Outside diameter
B
388
mm
Width
r (min.)
9.5
mm
Chamfer dimension
Basic Load Ratings
Cr
12700000
N
Basic dynamic load rating
C0r
24900000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
200
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
200
min-1
Grease lubrication
Oil (Oil-bath)
260
min-1
Oil-bath lubrication

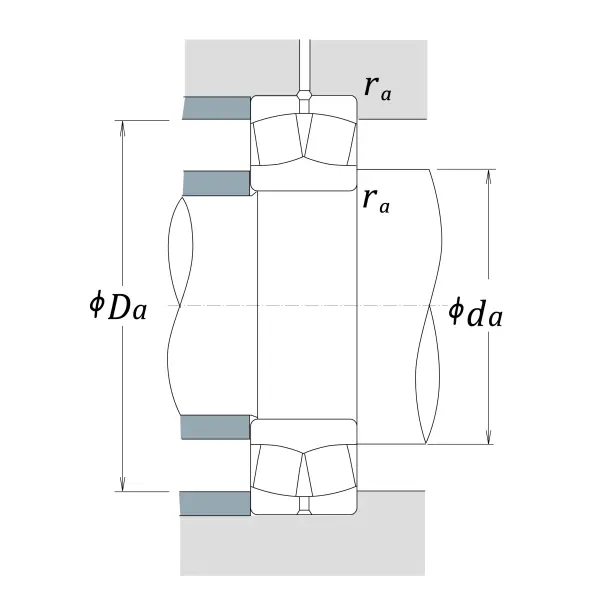

da (min.)
644
mm
Diameter of shaft abutment
Da (min.)
923
mm
Diameter of housing abutment
Da (max.)
1046
mm
Diameter of housing abutment
ra (max.)
8
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.36
Constant
Y2
2.8
Axial load Factors
Y3
1.9
Axial load Factors
Y0
1.8
Axial load Factors
