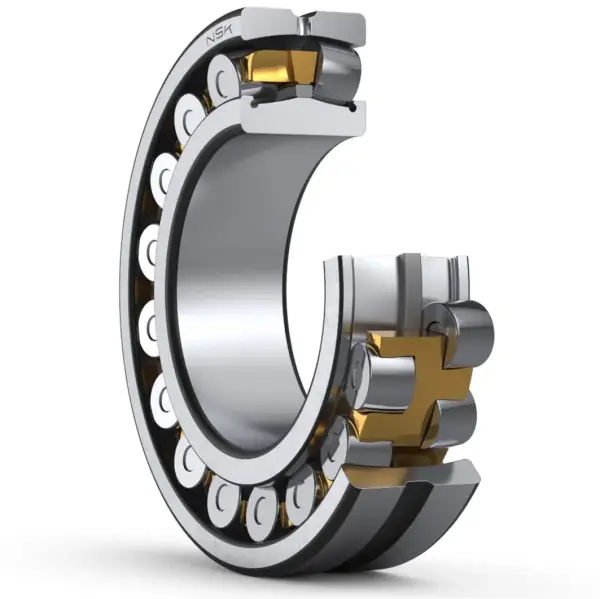

NSK 23220CAME4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
23220CAME4

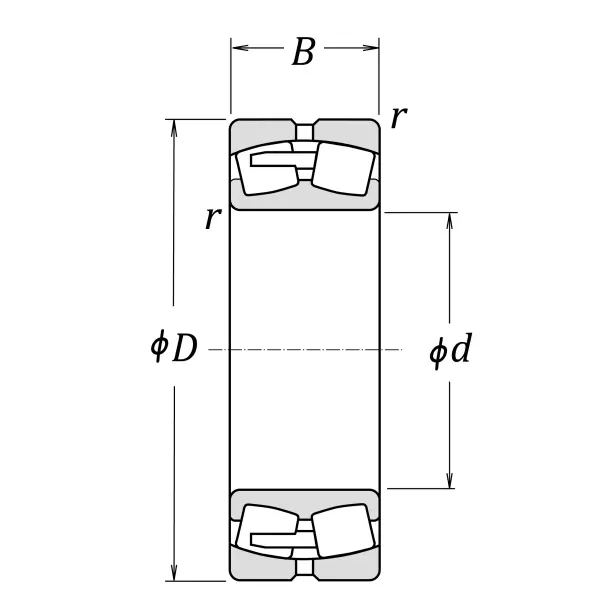

Boundary Dimensions
d
100
mm
Bore diameter
D
180
mm
Outside diameter
B
60.3
mm
Width
r (min.)
2.1
mm
Chamfer dimension
Basic Load Ratings
Cr
525000
N
Basic dynamic load rating
C0r
605000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
2800
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
3800
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
1600
min-1
Grease lubrication
Oil (Oil-bath)
2200
min-1
Oil-bath lubrication
da (min.)
112
mm
Diameter of shaft abutment
Da (min.)
155
mm
Diameter of housing abutment
Da (max.)
168
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.32
Constant
Y2
3.2
Axial load Factors
Y3
2.1
Axial load Factors
Y0
2.1
Axial load Factors
