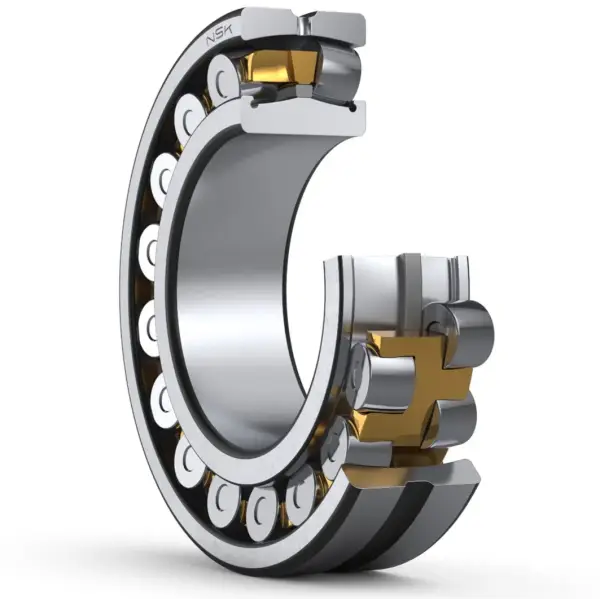

NSK 23224CAME4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
23224CAME4

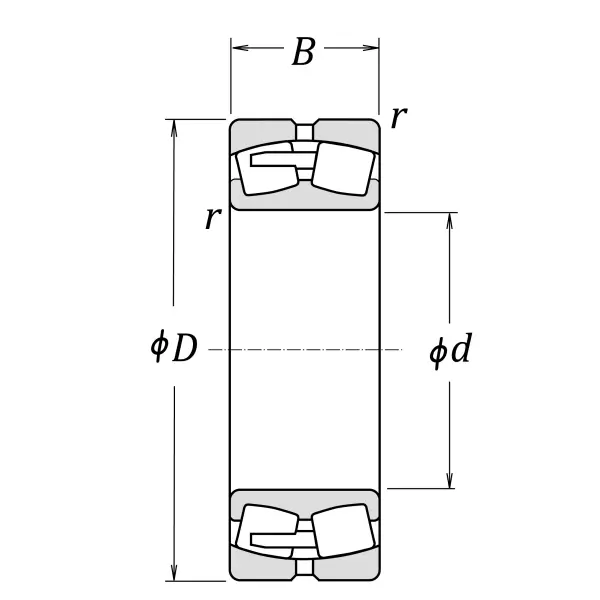

Boundary Dimensions
d
120
mm
Bore diameter
D
215
mm
Outside diameter
B
76
mm
Width
r (min.)
2.1
mm
Chamfer dimension
Basic Load Ratings
Cr
790000
N
Basic dynamic load rating
C0r
970000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
2200
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
3000
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
1300
min-1
Grease lubrication
Oil (Oil-bath)
1700
min-1
Oil-bath lubrication
da (min.)
132
mm
Diameter of shaft abutment
Da (min.)
182
mm
Diameter of housing abutment
Da (max.)
203
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.34
Constant
Y2
2.9
Axial load Factors
Y3
2
Axial load Factors
Y0
1.9
Axial load Factors
