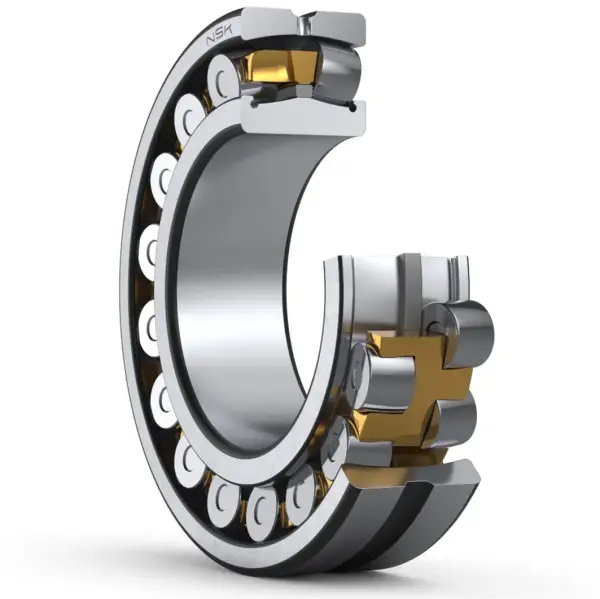

NSK 23988CAMKE4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
23988CAMKE4

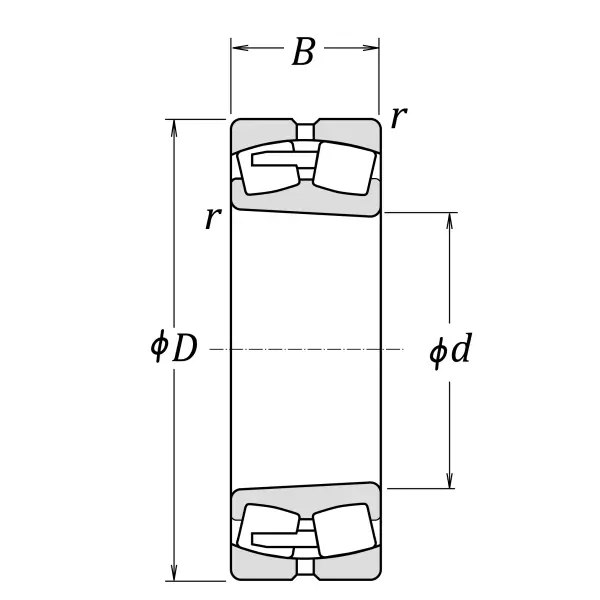

Boundary Dimensions
d
440
mm
Bore diameter
D
600
mm
Outside diameter
B
118
mm
Width
r (min.)
4
mm
Chamfer dimension
Basic Load Ratings
Cr
2190000
N
Basic dynamic load rating
C0r
4800000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
630
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
450
min-1
Grease lubrication
Oil (Oil-bath)
560
min-1
Oil-bath lubrication

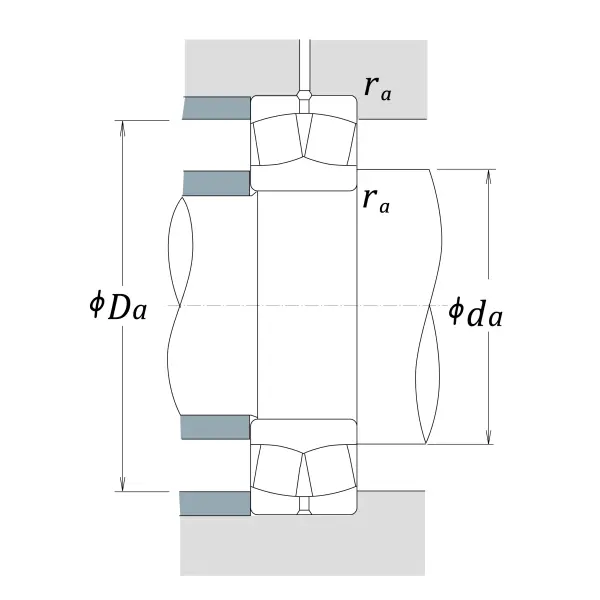

da (min.)
458
mm
Diameter of shaft abutment
Da (min.)
555
mm
Diameter of housing abutment
Da (max.)
582
mm
Diameter of housing abutment
ra (max.)
3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.18
Constant
Y2
5.7
Axial load Factors
Y3
3.9
Axial load Factors
Y0
3.8
Axial load Factors
