NSK 240/1060CAMK30E4

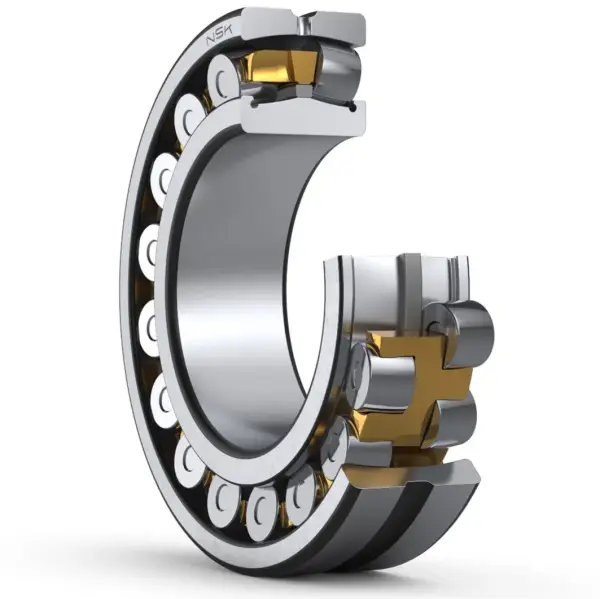

Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
240/1060CAMK30E4
Boundary Dimensions
d
1060
mm
Bore diameter
D
1500
mm
Outside diameter
B
438
mm
Width
r (min.)
9.5
mm
Chamfer dimension
Basic Load Ratings
Cr
16800000
N
Basic dynamic load rating
C0r
43000000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
140
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
100
min-1
Grease lubrication
Oil (Oil-bath)
130
min-1
Oil-bath lubrication
da (min.)
1104
mm
Diameter of shaft abutment
Da (min.)
1346
mm
Diameter of housing abutment
Da (max.)
1456
mm
Diameter of housing abutment
ra (max.)
8
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.28
Constant
Y2
3.6
Axial load Factors
Y3
2.4
Axial load Factors
Y0
2.4
Axial load Factors
