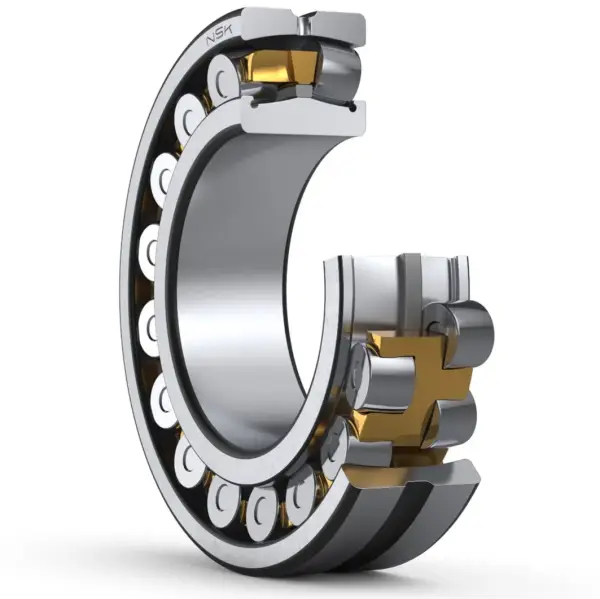

NSK 240/800CAMK30E4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
240/800CAMK30E4
Boundary Dimensions
d
800
mm
Bore diameter
D
1150
mm
Outside diameter
B
345
mm
Width
r (min.)
7.5
mm
Chamfer dimension
Basic Load Ratings
Cr
10900000
N
Basic dynamic load rating
C0r
26200000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
200
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
160
min-1
Grease lubrication
Oil (Oil-bath)
200
min-1
Oil-bath lubrication

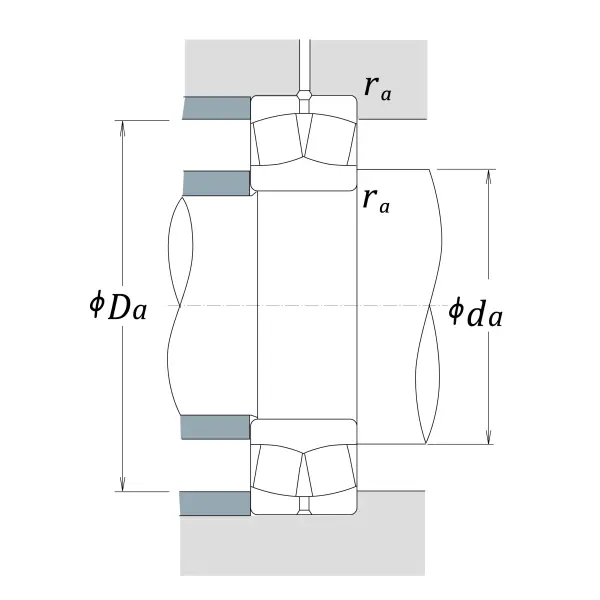

da (min.)
836
mm
Diameter of shaft abutment
Da (min.)
1029
mm
Diameter of housing abutment
Da (max.)
1114
mm
Diameter of housing abutment
ra (max.)
6
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.27
Constant
Y2
3.7
Axial load Factors
Y3
2.5
Axial load Factors
Y0
2.5
Axial load Factors
