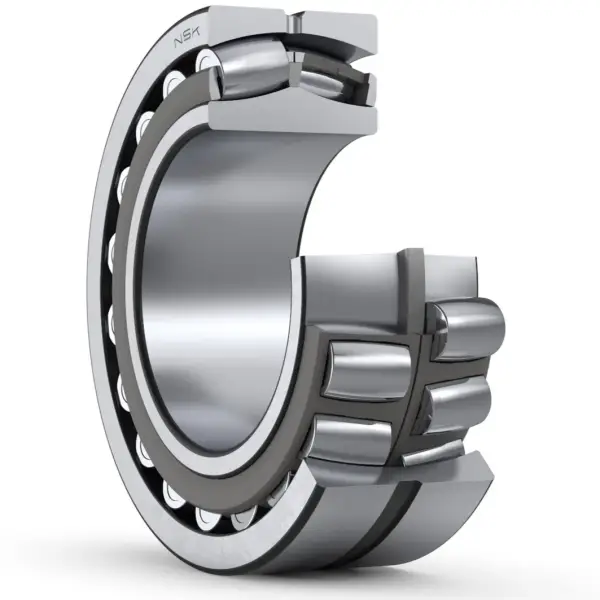

NSK 24022CE4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
24022CE4

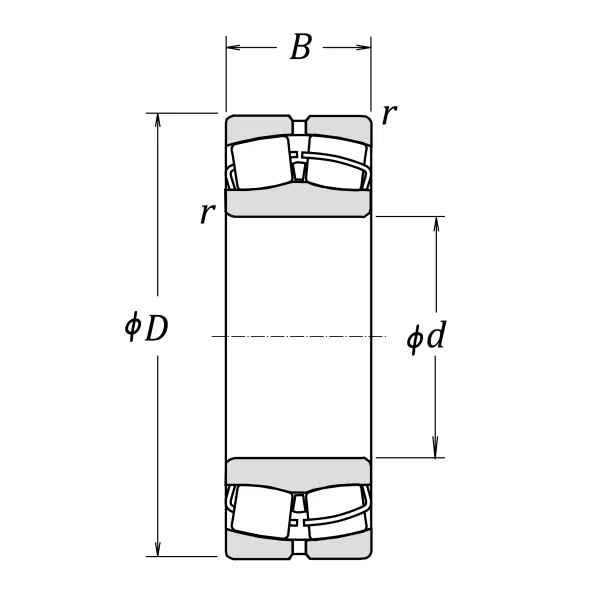

Boundary Dimensions
d
110
mm
Bore diameter
D
170
mm
Outside diameter
B
60
mm
Width
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Cr
380000
N
Basic dynamic load rating
C0r
645000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
2600
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
1600
min-1
Grease lubrication
Oil (Oil-bath)
2200
min-1
Oil-bath lubrication
da (min.)
120
mm
Diameter of shaft abutment
da (max.)
121
mm
Diameter of shaft abutment
Da (min.)
148
mm
Diameter of housing abutment
Da (max.)
160
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.32
Constant
Y2
3.1
Axial load Factors
Y3
2.1
Axial load Factors
Y0
2.1
Axial load Factors
