NSK 24060CAMK30E4

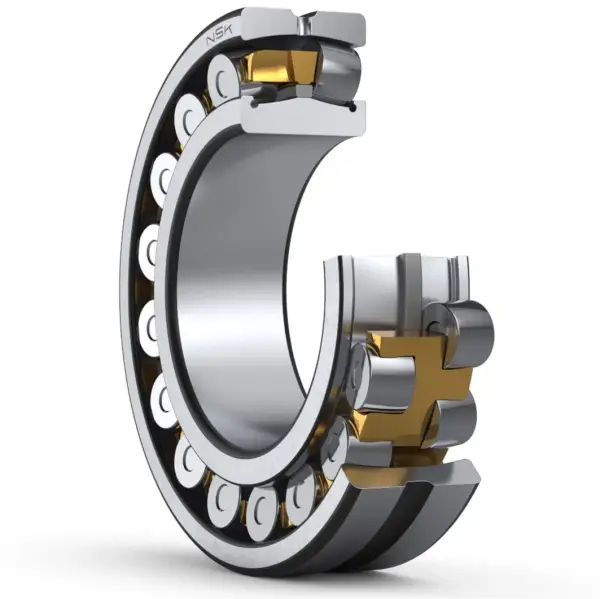

Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
24060CAMK30E4

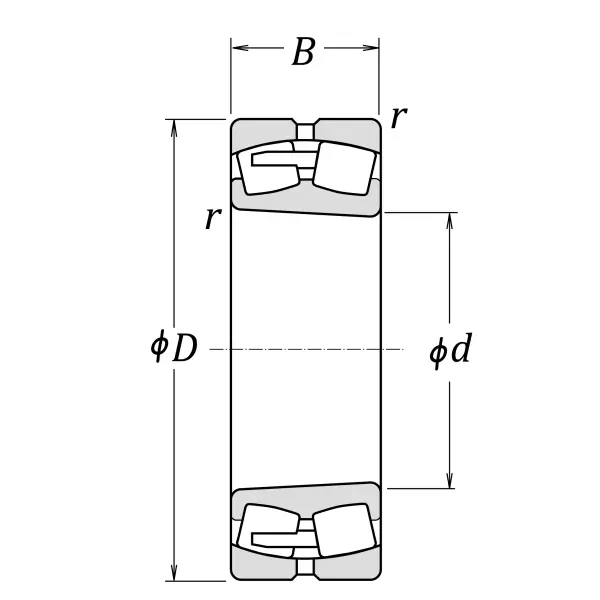

Boundary Dimensions
d
300
mm
Bore diameter
D
460
mm
Outside diameter
B
160
mm
Width
r (min.)
4
mm
Chamfer dimension
Basic Load Ratings
Cr
2890000
N
Basic dynamic load rating
C0r
4600000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
800
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
1400
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
530
min-1
Grease lubrication
Oil (Oil-bath)
710
min-1
Oil-bath lubrication

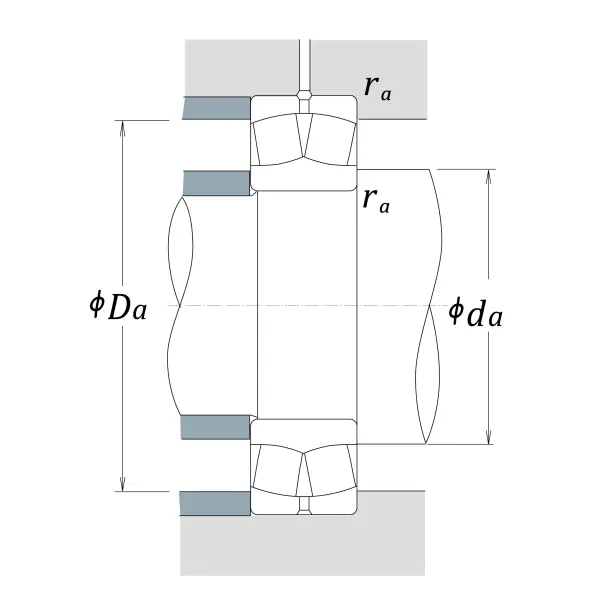

da (min.)
318
mm
Diameter of shaft abutment
Da (min.)
400
mm
Diameter of housing abutment
Da (max.)
442
mm
Diameter of housing abutment
ra (max.)
3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.32
Constant
Y2
3.1
Axial load Factors
Y3
2.1
Axial load Factors
Y0
2
Axial load Factors
