NSK 240TAC29D+L
Double-Direction Angular Contact Thrust Ball Bearings (NSKTAC D Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
240TAC29D+L
Designations
240TAC29D+L
Boundary Dimensions
d
240
mm
Bore diameter
D
320
mm
Outside diameter
T
96
mm
Inner Ring Width
C
48
mm
Outer Ring Width
r(min.)
2.1
mm
Chamfer Dimension
r1(min.)
1.1
mm
Chamfer Dimension
Basic Load Ratings
Ca
268
kN
Basic Dynamic Load Rating
C0a
980
kN
Basic Static Load Rating
Speeds
Grease
1700
min-1
Limiting Speed (C6-Preload)
Oil (Oil-air)
1800
min-1
Limiting Speed (C6-Preload)
Grease
1500
min-1
Limiting Speed (C7-Preload)
Oil (Oil-air)
1600
min-1
Limiting Speed (C7-Preload)
Grease
1200
min-1
Limiting Speed (C8-Preload)
Oil (Oil-air)
1300
min-1
Limiting Speed (C8-Preload)
Dimensions
60°
Contact Angle

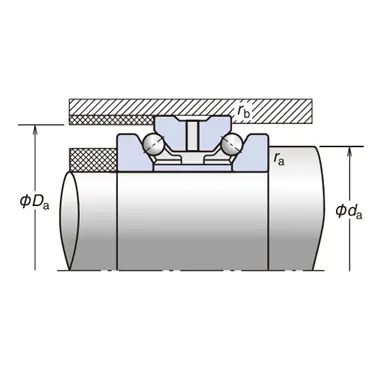

Abutment and Fillet Dimensions
ra(max.)
2
mm
Radius of Shaft or Housing Fillet
rb(max.)
1
mm
Radius of Shaft or Housing Fillet
da
270
mm
Diameter of Shaft Abutment
Da
307
mm
Diameter of Housing Abutment
