NSK 241/600CAMK30E4

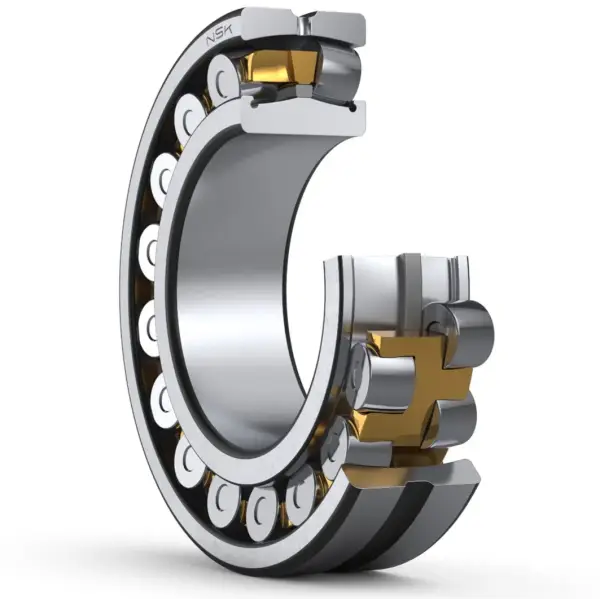

Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
241/600CAMK30E4

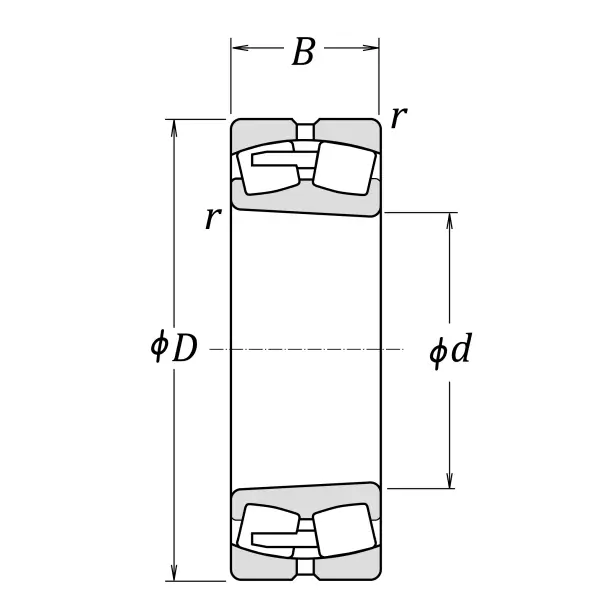

Boundary Dimensions
d
600
mm
Bore diameter
D
980
mm
Outside diameter
B
375
mm
Width
r (min.)
7.5
mm
Chamfer dimension
Basic Load Ratings
Cr
10400000
N
Basic dynamic load rating
C0r
21900000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
170
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease
220
min-1
Grease lubrication
Oil (Oil-bath)
280
min-1
Oil-bath lubrication

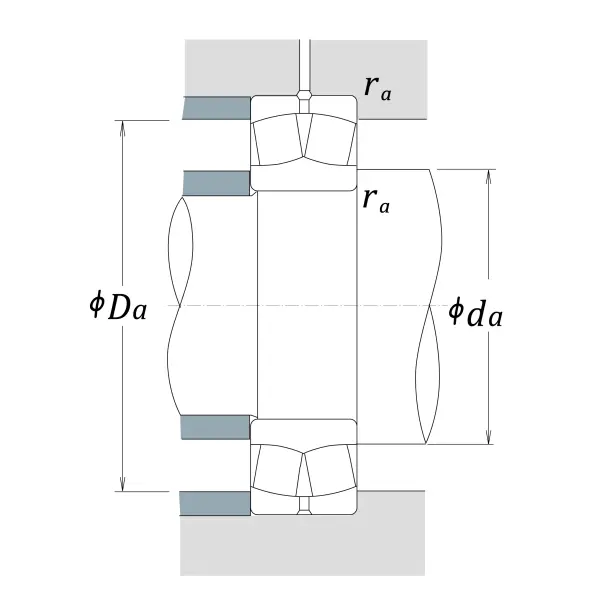

da (min.)
636
mm
Diameter of shaft abutment
Da (min.)
836
mm
Diameter of housing abutment
Da (max.)
944
mm
Diameter of housing abutment
ra (max.)
6
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.39
Constant
Y2
2.6
Axial load Factors
Y3
1.8
Axial load Factors
Y0
1.7
Axial load Factors
