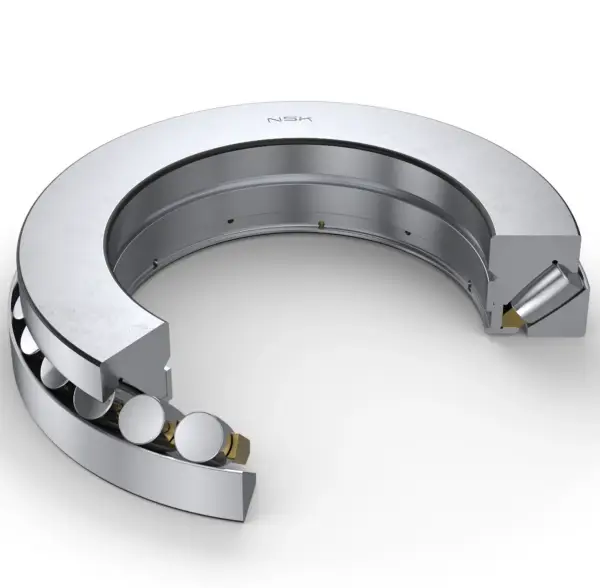

NSK 29256
Thrust Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
29256
Boundary Dimensions
d
280
mm
Bore diameter
D
380
mm
Outside diameter
T,T3
60
mm
Height
r (min.)
2.1
mm
Chamfer dimension
Basic Load Ratings
Ca
885000
N
Basic dynamic load rating
C0a
4100000
N
Basic static load rating
Speeds
Oil (Oil-bath)
1100
min-1
Oil-bath lubrication
B2
57
mm
Height shaft washer + cage
d1
365
mm
Outside diameter of shaft washer end side face
B1
19
mm
Width shaft washer or length of shaft washer bore diameter that fits on shaft
C
30
mm
Height housing washer
A
150
mm
Distance from shaft washer end side face to pressure point
D1
323
mm
Shoulder diameter outer ring

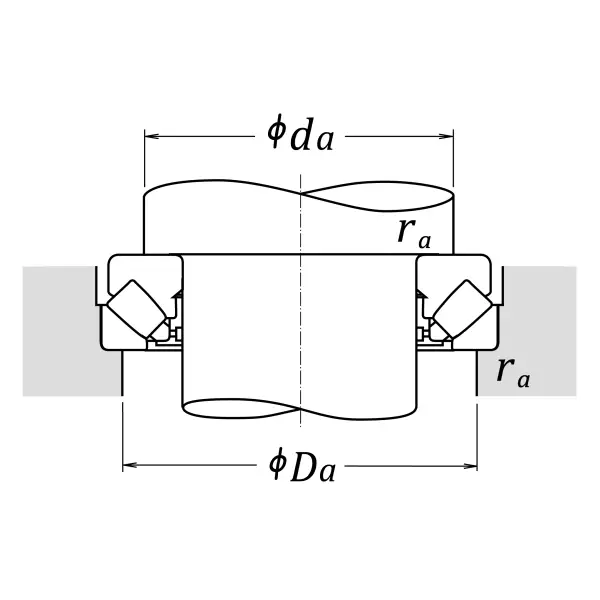

Dimensions
Da (max.)
345
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
da (min.)
325
mm
Abutment diameter spacer ring (E design)
