NSK 29317E
Thrust Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
29317E
Boundary Dimensions
d
85
mm
Bore diameter
D
150
mm
Outside diameter
T,T3
39
mm
Height
r (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Ca
330000
N
Basic dynamic load rating
C0a
1040000
N
Basic static load rating
Speeds
Oil (Oil-bath)
2400
min-1
Oil-bath lubrication
B2
35.5
mm
Height shaft washer + cage
d1
134.5
mm
Outside diameter of shaft washer end side face
B1
24.5
mm
Width shaft washer or length of shaft washer bore diameter that fits on shaft
C
19
mm
Height housing washer
A
50
mm
Distance from shaft washer end side face to pressure point
D1
112
mm
Shoulder diameter outer ring

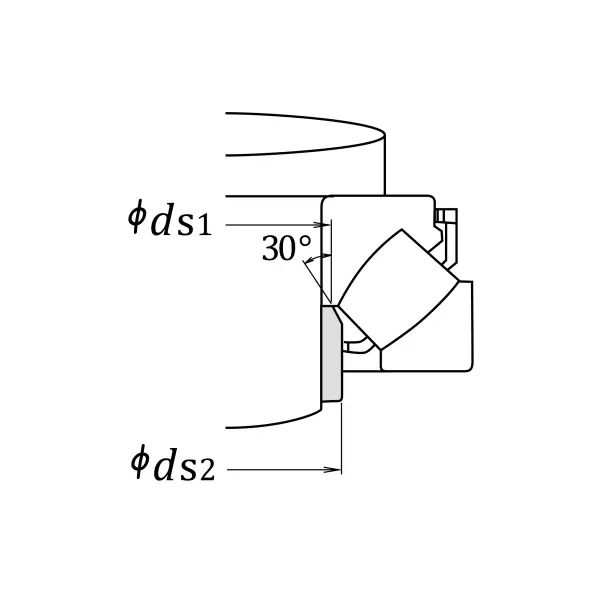

ds1 (max.)
91
mm
Abutment diameter spacer ring
ds2 (max.)
91
mm
Abutment diameter spacer ring (E design)

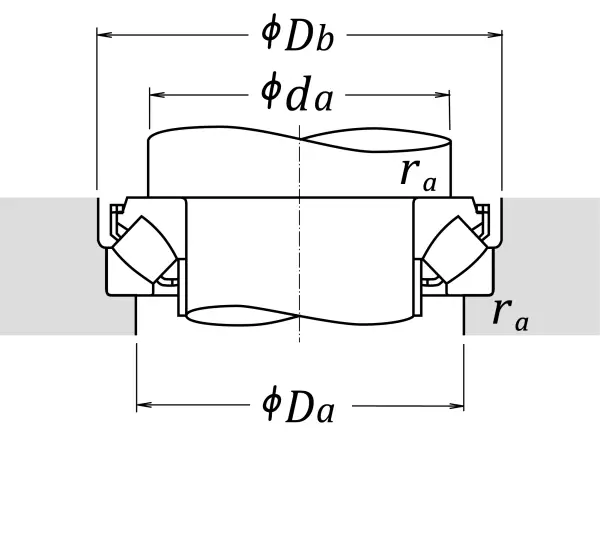

Dimensions
Da (max.)
135
mm
Diameter of housing abutment
Db (max.)
153
mm
Abutment diameter housing (E design)
ra (max.)
1.5
mm
Radius of shaft or housing fillet
da (min.)
115
mm
Abutment diameter spacer ring (E design)
