NSK 29328E
Thrust Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
29328E

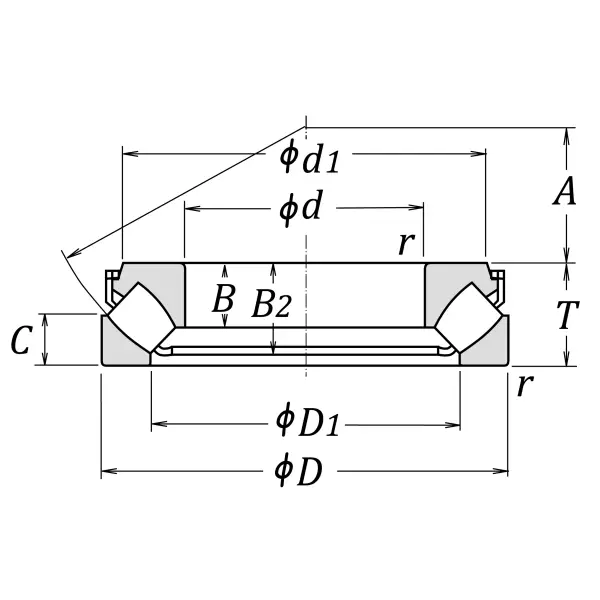

Boundary Dimensions
d
140
mm
Bore diameter
D
240
mm
Outside diameter
T,T3
60
mm
Height
r (min.)
2.1
mm
Chamfer dimension
Basic Load Ratings
Ca
840000
N
Basic dynamic load rating
C0a
2810000
N
Basic static load rating
Speeds
Oil (Oil-bath)
1400
min-1
Oil-bath lubrication
B2
54
mm
Height shaft washer + cage
d1
216.5
mm
Outside diameter of shaft washer end side face
B1
38.5
mm
Width shaft washer or length of shaft washer bore diameter that fits on shaft
C
30
mm
Height housing washer
A
82
mm
Distance from shaft washer end side face to pressure point
D1
179
mm
Shoulder diameter outer ring

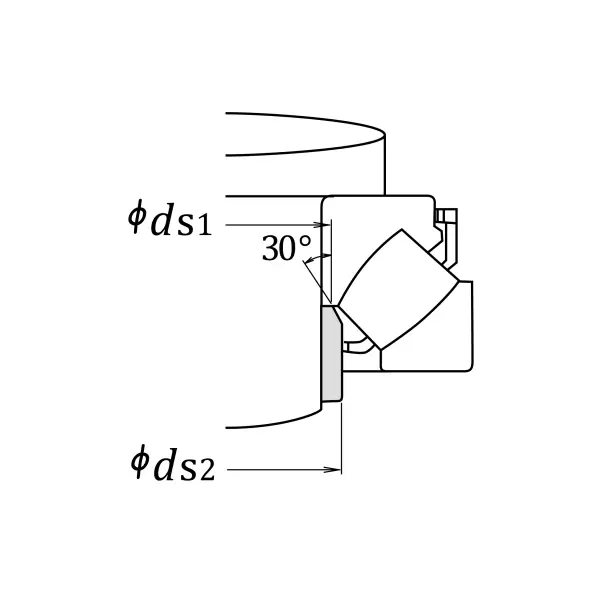

ds1 (max.)
148
mm
Abutment diameter spacer ring
ds2 (max.)
154
mm
Abutment diameter spacer ring (E design)
Dimensions

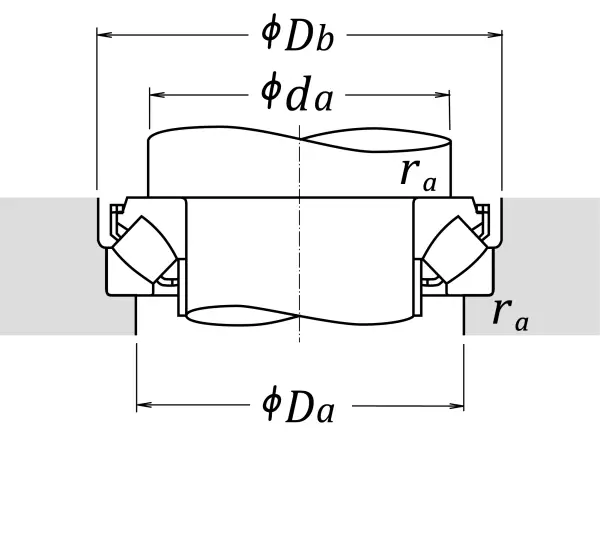

Da (max.)
205
mm
Diameter of housing abutment
Db (max.)
244
mm
Abutment diameter housing (E design)
ra (max.)
2
mm
Radius of shaft or housing fillet
da (min.)
185
mm
Abutment diameter spacer ring (E design)
