NSK 29418E
Thrust Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
29418E
Boundary Dimensions
d
90
mm
Bore diameter
D
190
mm
Outside diameter
T,T3
60
mm
Height
r (min.)
2.1
mm
Chamfer dimension
Basic Load Ratings
Ca
695000
N
Basic dynamic load rating
C0a
1950000
N
Basic static load rating
Speeds
Oil (Oil-bath)
1800
min-1
Oil-bath lubrication
B2
54.5
mm
Height shaft washer + cage
d1
165.5
mm
Outside diameter of shaft washer end side face
B1
39
mm
Width shaft washer or length of shaft washer bore diameter that fits on shaft
C
29
mm
Height housing washer
A
56
mm
Distance from shaft washer end side face to pressure point
D1
129.5
mm
Shoulder diameter outer ring

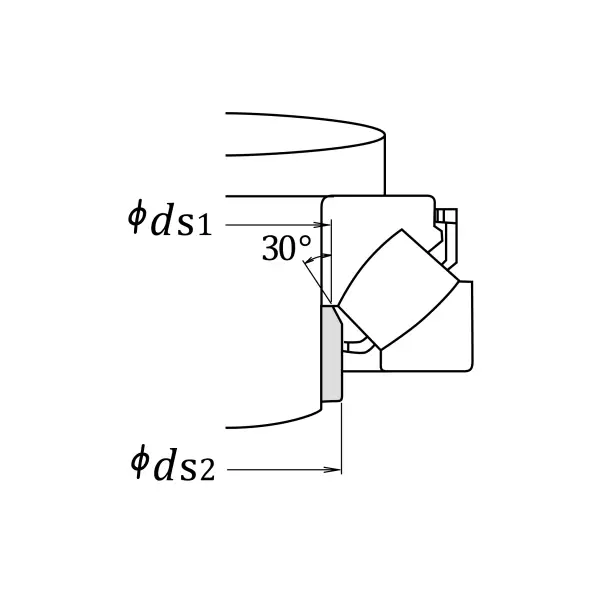

ds1 (max.)
100
mm
Abutment diameter spacer ring
ds2 (max.)
100
mm
Abutment diameter spacer ring (E design)
Dimensions

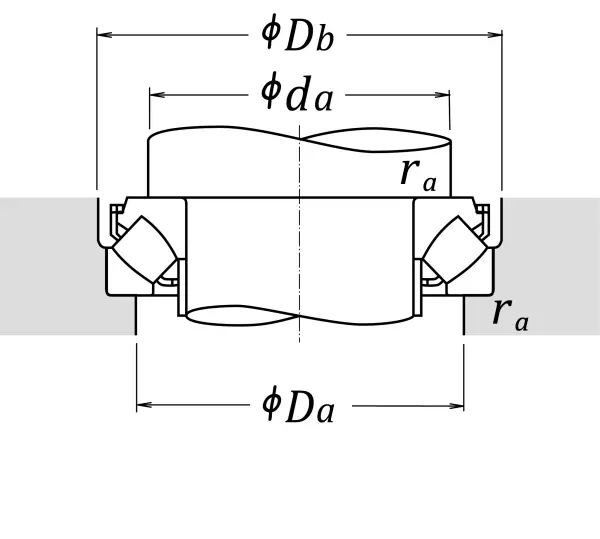

Da (max.)
157
mm
Diameter of housing abutment
Db (max.)
193
mm
Abutment diameter housing (E design)
ra (max.)
2
mm
Radius of shaft or housing fillet
da (min.)
135
mm
Abutment diameter spacer ring (E design)
