NSK 29460

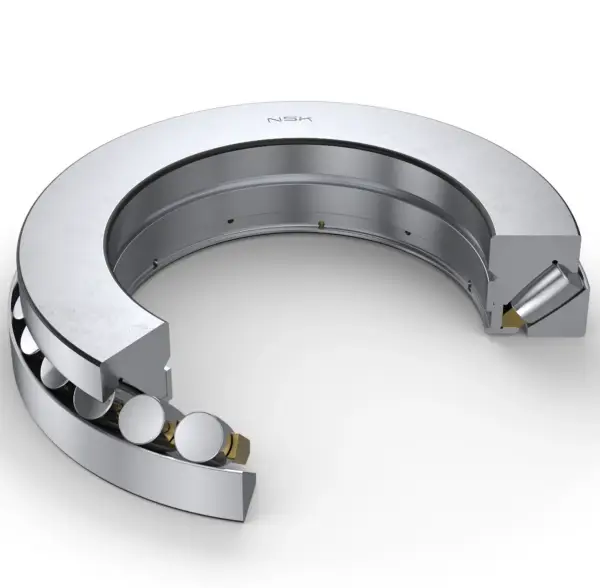

Thrust Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
29460
Boundary Dimensions
d
300
mm
Bore diameter
D
540
mm
Outside diameter
T,T3
145
mm
Height
r (min.)
6
mm
Chamfer dimension
Basic Load Ratings
Ca
3500000
N
Basic dynamic load rating
C0a
13700000
N
Basic static load rating
Speeds
Oil (Oil-bath)
630
min-1
Oil-bath lubrication
B2
140
mm
Height shaft washer + cage
d1
500
mm
Outside diameter of shaft washer end side face
B1
52
mm
Width shaft washer or length of shaft washer bore diameter that fits on shaft
C
70
mm
Height housing washer
A
175
mm
Distance from shaft washer end side face to pressure point
D1
402
mm
Shoulder diameter outer ring

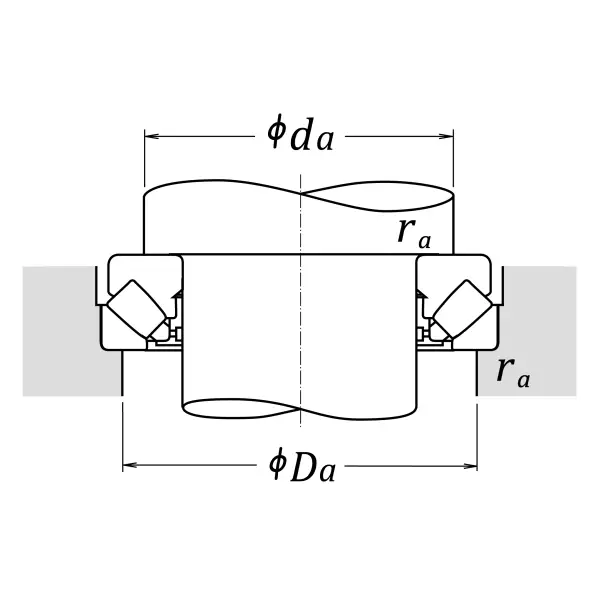

Dimensions
Da (max.)
460
mm
Diameter of housing abutment
ra (max.)
5
mm
Radius of shaft or housing fillet
da (min.)
410
mm
Abutment diameter spacer ring (E design)
