NSK 6BSR10H
ROBUST Series Ultra High-Speed Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
6BSR10H

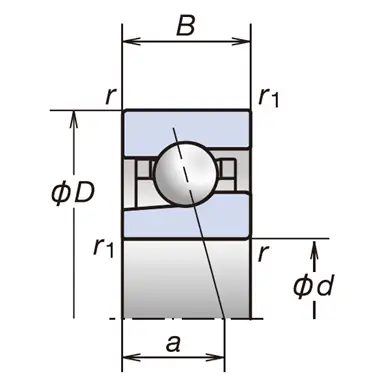

Boundary Dimensions
BSR: 15°
Bearing Type
d
6
mm
Bore diameter
D
17
mm
Outside diameter
B
6
mm
Width
r(min.)
0.3
mm
Chamfer Dimension
r1(min.)
0.15
mm
Chamfer Dimension
Basic Load Ratings
Cr
1.71
kN
Basic Dynamic Load Rating
C0r
0.425
kN
Basic Static Load Rating
Speeds
Grease
166000
min-1
Limiting Speed
Oil (Oil-air)
244000
min-1
Limiting Speed
Dimensions
15°
Contact Angle
a
4.50
mm
Effective Load Center
Abutment and Fillet Dimensions
da(min.)
8.5
mm
Diameter of Shaft Abutment
Da(max.)
14.5
mm
Diameter of Housing Abutment
ra(max.)
0.3
mm
Radius of Shaft or Housing Fillet
