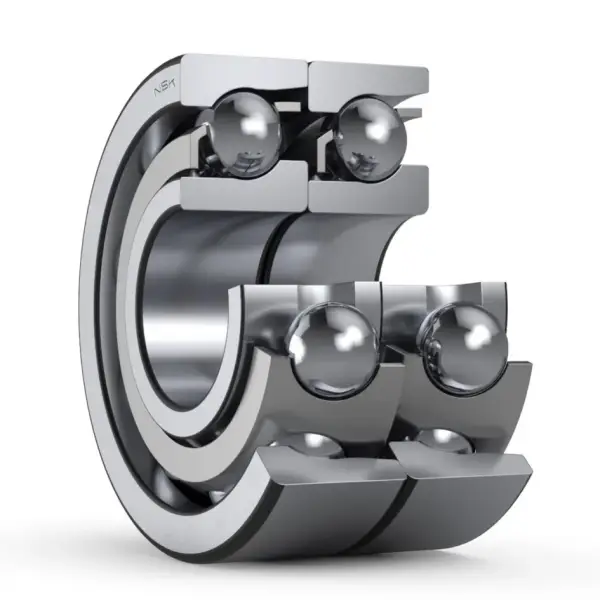

NSK 7002AWDT
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7002AWDT
Boundary Dimensions
d
15
mm
Bore diameter
D
32
mm
Outside diameter
2B
18
mm
Width 2B
r (min.)
0.3
mm
Chamfer dimension
r1 (min.)
0.15
mm
Chamfer dimension
Basic Load Ratings
Cr
10900
N
Basic dynamic load rating
C0r
6850
N
Basic static load rating
Speeds
Grease
15000
min-1
Grease lubrication
Oil (Oil-bath)
22000
min-1
Oil-bath lubrication
da (min.)
17.5
mm
Diameter of shaft abutment
Da (max.)
29.5
mm
Diameter of housing abutment
ra (max.)
0.3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
0.06
kg
Mass approx.
