NSK 7005AWDT

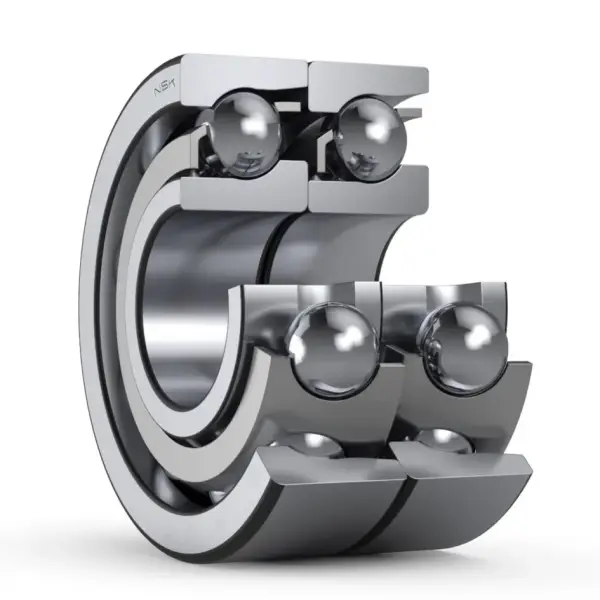

Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7005AWDT
Boundary Dimensions
d
25
mm
Bore diameter
D
47
mm
Outside diameter
2B
24
mm
Width 2B
r (min.)
0.6
mm
Chamfer dimension
r1 (min.)
0.3
mm
Chamfer dimension
Basic Load Ratings
Cr
20200
N
Basic dynamic load rating
C0r
14800
N
Basic static load rating
Speeds
Grease
10000
min-1
Grease lubrication
Oil (Oil-bath)
14000
min-1
Oil-bath lubrication
da (min.)
30
mm
Diameter of shaft abutment
Da (max.)
42
mm
Diameter of housing abutment
ra (max.)
0.6
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
0.158
kg
Mass approx.
