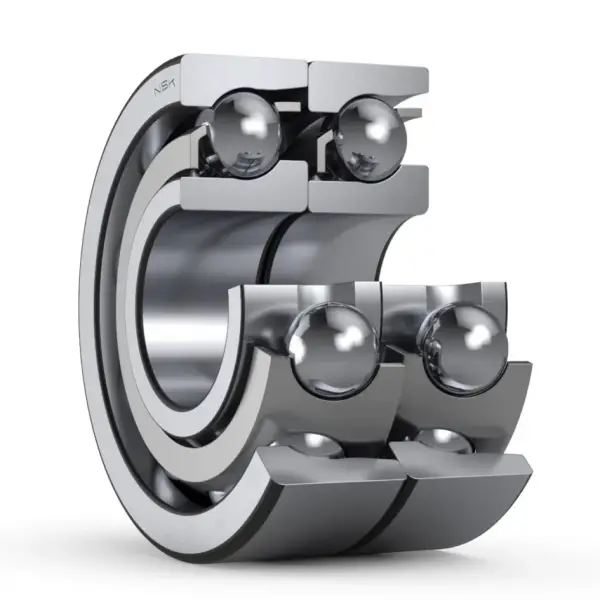

NSK 7008AWDT
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7008AWDT

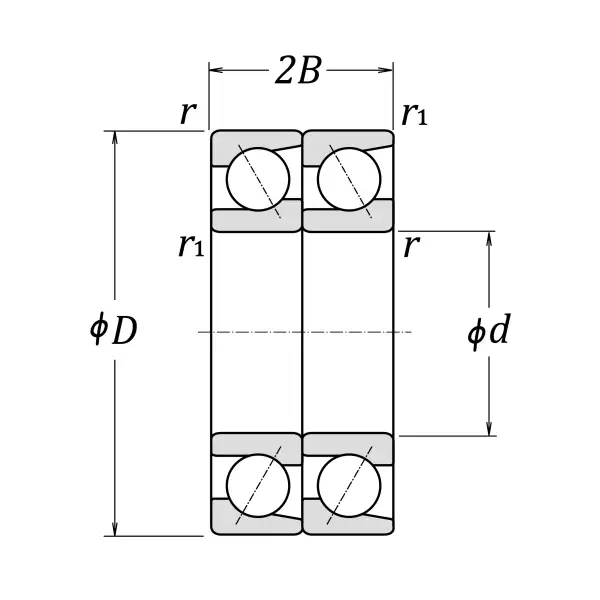

Boundary Dimensions
d
40
mm
Bore diameter
D
68
mm
Outside diameter
2B
30
mm
Width 2B
r (min.)
1
mm
Chamfer dimension
r1 (min.)
0.6
mm
Chamfer dimension
Basic Load Ratings
Cr
35000
N
Basic dynamic load rating
C0r
31000
N
Basic static load rating
Speeds
Grease
6700
min-1
Grease lubrication
Oil (Oil-bath)
9000
min-1
Oil-bath lubrication

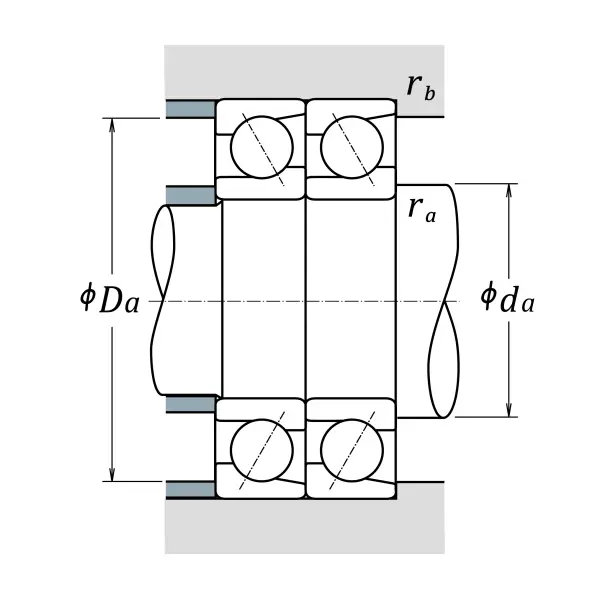

da (min.)
46
mm
Diameter of shaft abutment
Da (max.)
62
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
0.38
kg
Mass approx.
