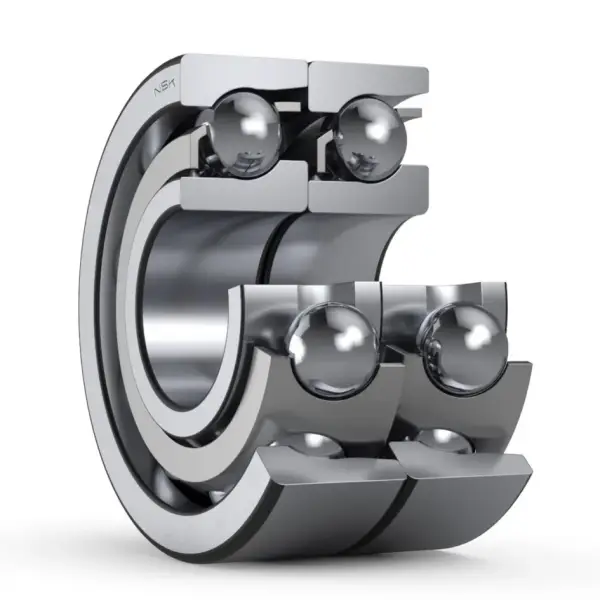

NSK 7009AWDT
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7009AWDT
Boundary Dimensions
d
45
mm
Bore diameter
D
75
mm
Outside diameter
2B
32
mm
Width 2B
r (min.)
1
mm
Chamfer dimension
r1 (min.)
0.6
mm
Chamfer dimension
Basic Load Ratings
Cr
41500
N
Basic dynamic load rating
C0r
37500
N
Basic static load rating
Speeds
Grease
6000
min-1
Grease lubrication
Oil (Oil-bath)
8500
min-1
Oil-bath lubrication
da (min.)
51
mm
Diameter of shaft abutment
Da (max.)
69
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
0.5
kg
Mass approx.
