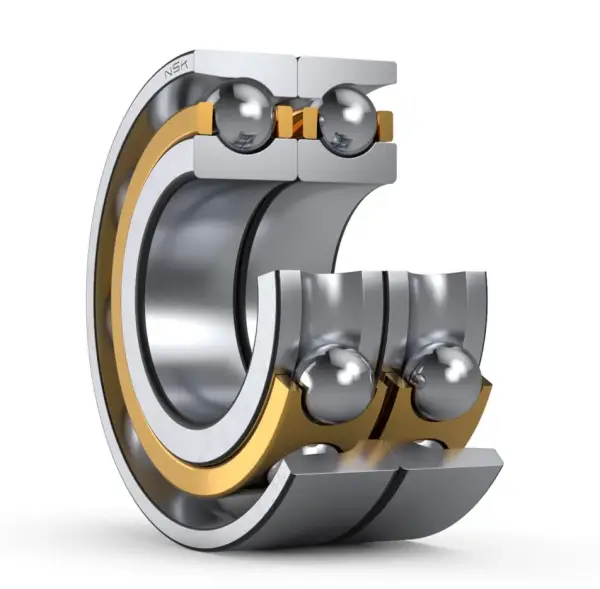

NSK 7022ADB
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
7022ADB
Boundary Dimensions
d
110
mm
Bore diameter
D
170
mm
Outside diameter
2B
56
mm
Width 2B
r (min.)
2
mm
Chamfer dimension
r1 (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
173000
N
Basic dynamic load rating
C0r
191000
N
Basic static load rating
Speeds
Grease
3200
min-1
Grease lubrication
Oil (Oil-bath)
4300
min-1
Oil-bath lubrication
a0
108.8
mm
Load center spacings
Dimensions
da (min.)
120
mm
Diameter of shaft abutment
rb (max.)
1
mm
Radius of fillet
Db (max.)
164
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
