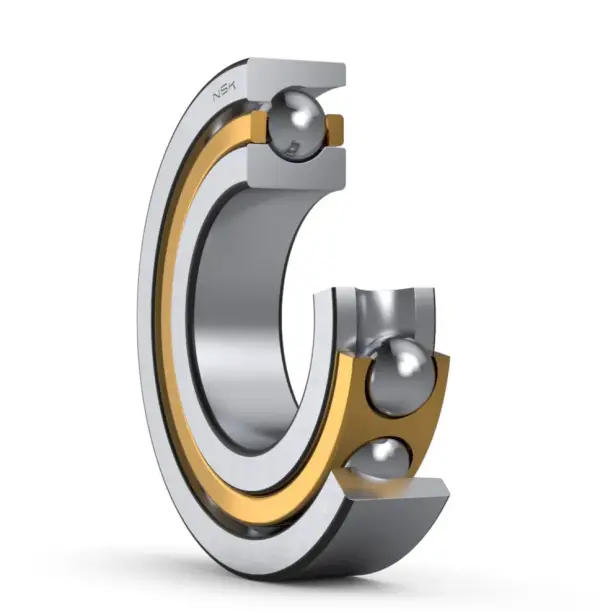

NSK 7026A
Single-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
7026A
Boundary Dimensions
d
130
mm
Bore diameter
D
200
mm
Outside diameter
B
33
mm
Width
r (min.)
2
mm
Chamfer dimension
r1 (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
129000
N
Basic dynamic load rating
C0r
125000
N
Basic static load rating
Speeds
Grease
3400
min-1
Grease lubrication
Oil (Oil-bath)
4500
min-1
Oil-bath lubrication
a
64.1
mm
Effective load center
Dimensions
da (min.)
140
mm
Diameter of shaft abutment
Da (max.)
190
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
