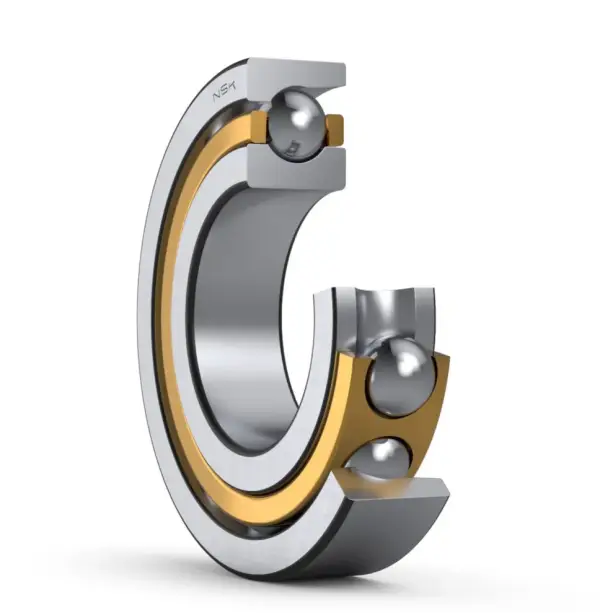

NSK 7036A
Standard Series High Precision Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
7036A

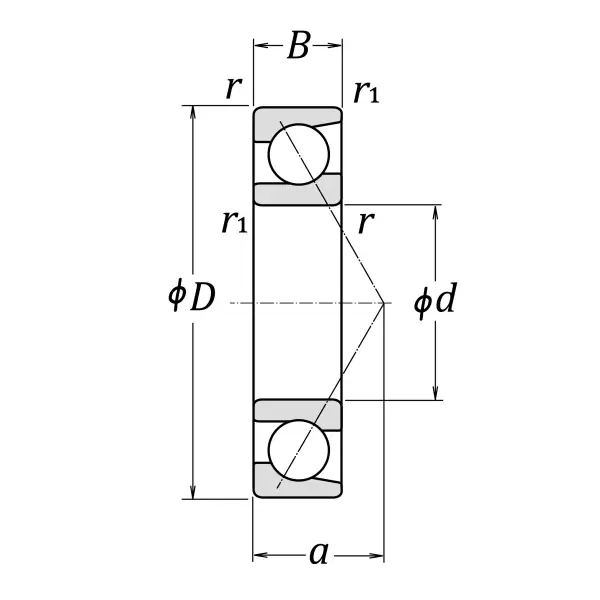

Boundary Dimensions
d
180
mm
Bore diameter
D
280
mm
Outside diameter
B
46
mm
Width
r(min.)
2.1
mm
Chamfer Dimension
r1(min.)
1.1
mm
Chamfer Dimension
Basic Load Ratings
Cr
261
kN
Basic Dynamic Load Rating
C0r
252
kN
Basic Static Load Rating
Speeds
Grease
2900
min-1
Limiting Speed
Oil (Oil-air)
4000
min-1
Limiting Speed
Dimensions
A: 30°
Contact Angle
a
89.4
mm
Effective Load Center

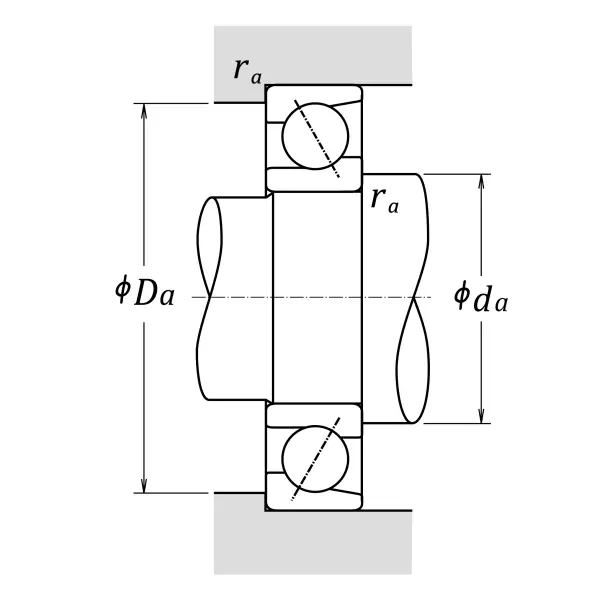

Abutment and Fillet Dimensions
da(min.)
192
mm
Diameter of Shaft Abutment
Da(max.)
268
mm
Diameter of Housing Abutment
Db(max.)
273
mm
Diameter of Housing Abutment
ra(max.)
2
mm
Radius of Shaft or Housing Fillet
rb(max.)
1
mm
Radius of Shaft or Housing Fillet
