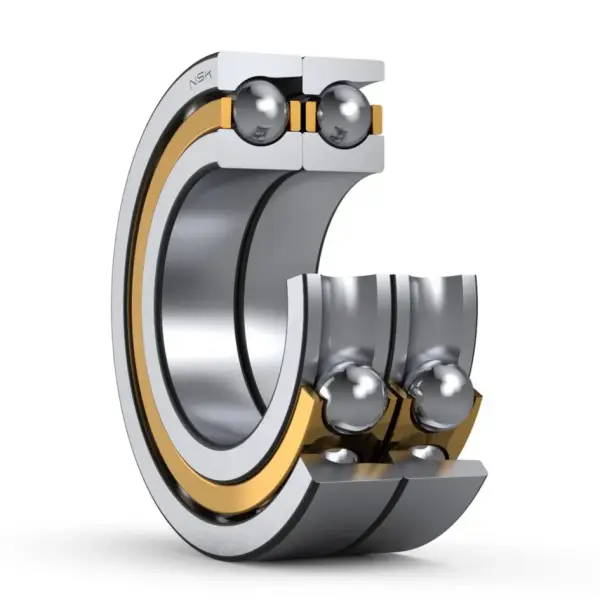

NSK 7038ADT
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7038ADT
Boundary Dimensions
d
190
mm
Bore diameter
D
290
mm
Outside diameter
2B
92
mm
Width 2B
r (min.)
2.1
mm
Chamfer dimension
r1 (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
400000
N
Basic dynamic load rating
C0r
560000
N
Basic static load rating
Speeds
Grease
1400
min-1
Grease lubrication
Oil (Oil-bath)
1900
min-1
Oil-bath lubrication
da (min.)
202
mm
Diameter of shaft abutment
Da (max.)
278
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
22.6
kg
Mass approx.
