NSK 7205BEAT85

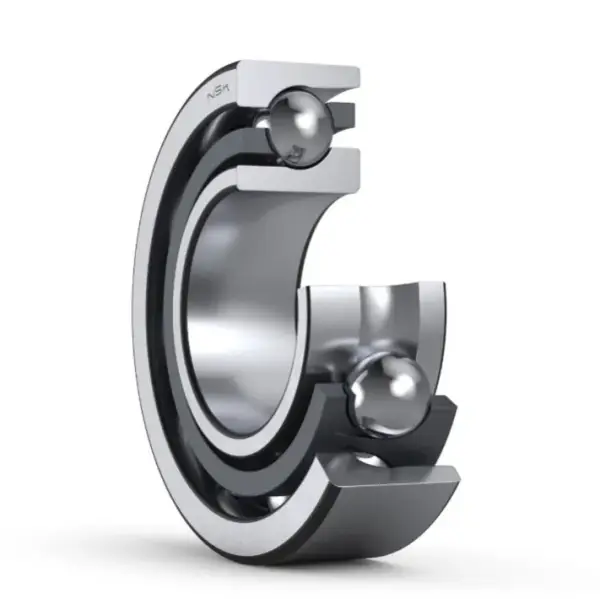

Single-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
7205BEAT85
Boundary Dimensions
d
25
mm
Bore diameter
D
52
mm
Outside diameter
B
15
mm
Width
r (min.)
1
mm
Chamfer dimension
r1 (min.)
0.6
mm
Chamfer dimension
Basic Load Ratings
Cr
18400
N
Basic dynamic load rating
C0r
10200
N
Basic static load rating
Speeds
Grease
12000
min-1
Grease lubrication
Oil (Oil-bath)
17000
min-1
Oil-bath lubrication
a
23.7
mm
Effective load center
Dimensions
da (min.)
31
mm
Diameter of shaft abutment
Da (max.)
46
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
