NSK 7210AWDT

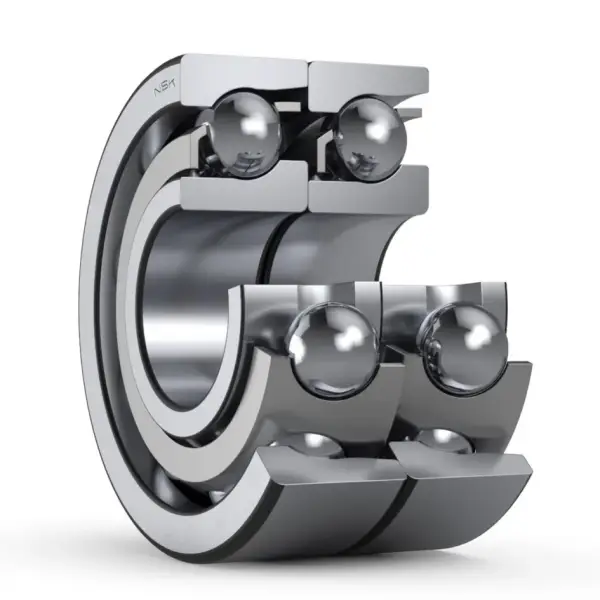

Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7210AWDT

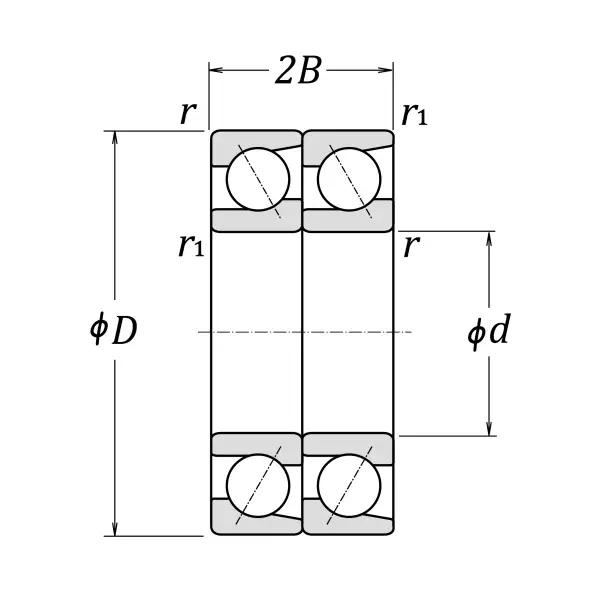

Boundary Dimensions
d
50
mm
Bore diameter
D
90
mm
Outside diameter
2B
40
mm
Width 2B
r (min.)
1.1
mm
Chamfer dimension
r1 (min.)
0.6
mm
Chamfer dimension
Basic Load Ratings
Cr
74000
N
Basic dynamic load rating
C0r
63000
N
Basic static load rating
Speeds
Grease
5000
min-1
Grease lubrication
Oil (Oil-bath)
7100
min-1
Oil-bath lubrication
da (min.)
57
mm
Diameter of shaft abutment
Da (max.)
83
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet

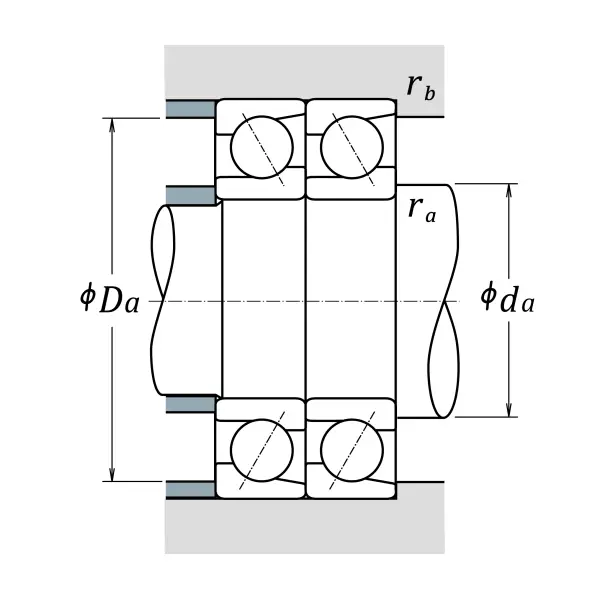

Abutment and Fillet Dimensions
Mass approx.
0.932
kg
Mass approx.
