NSK 7211BW
Single-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7211BW

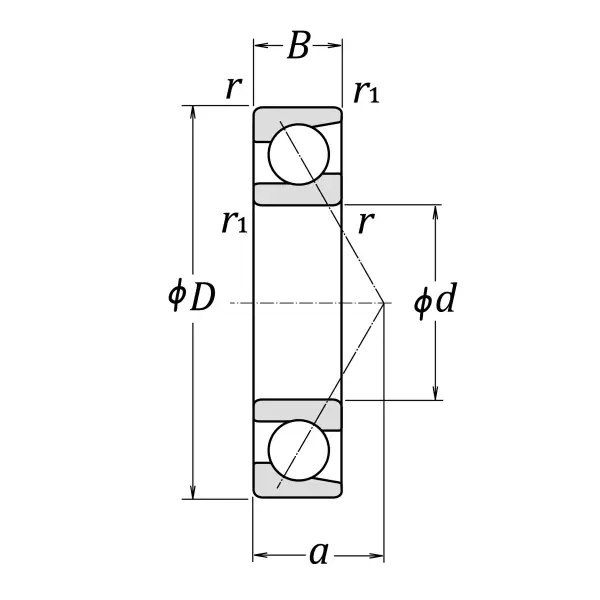

Boundary Dimensions
d
55
mm
Bore diameter
D
100
mm
Outside diameter
B
21
mm
Width
r (min.)
1.5
mm
Chamfer dimension
r1 (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
51000
N
Basic dynamic load rating
C0r
36000
N
Basic static load rating
Speeds
Grease
4000
min-1
Grease lubrication
Oil (Oil-bath)
5600
min-1
Oil-bath lubrication
a
43
mm
Effective load center

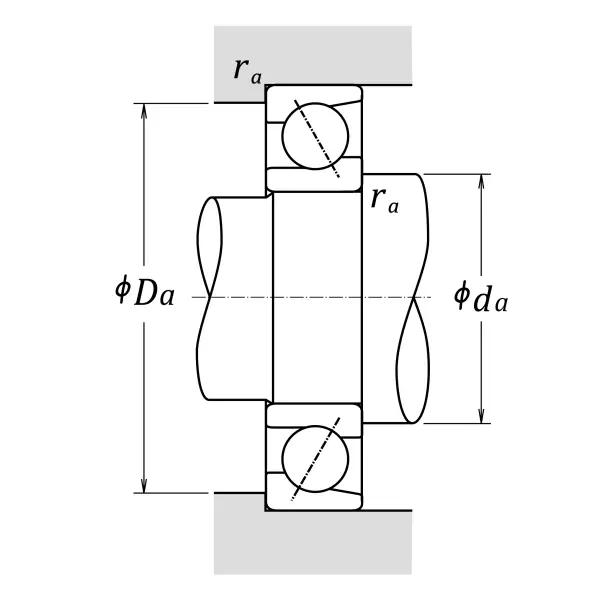

Dimensions
da (min.)
64
mm
Diameter of shaft abutment
Da (max.)
91
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
