NSK 7212BEAT7
Single-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7212BEAT7

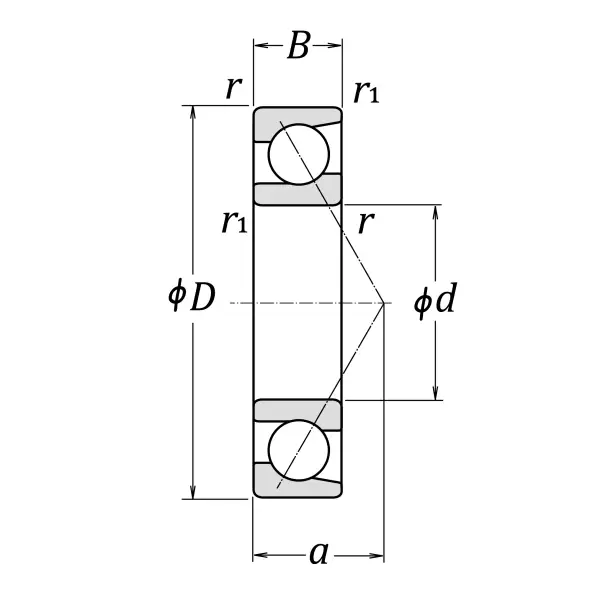

Boundary Dimensions
d
60
mm
Bore diameter
D
110
mm
Outside diameter
B
22
mm
Width
r (min.)
1.5
mm
Chamfer dimension
r1 (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
64500
N
Basic dynamic load rating
C0r
45000
N
Basic static load rating
Speeds
Grease
5300
min-1
Grease lubrication
Oil (Oil-bath)
7500
min-1
Oil-bath lubrication
a
46.7
mm
Effective load center

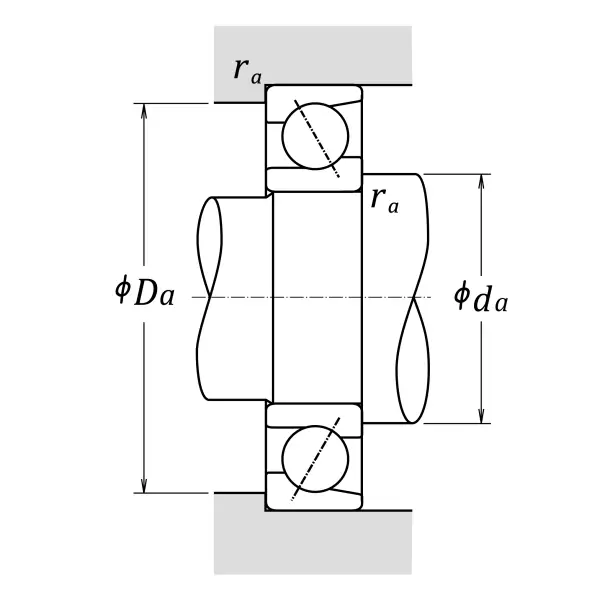

Dimensions
da (min.)
69
mm
Diameter of shaft abutment
Da (max.)
101
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
