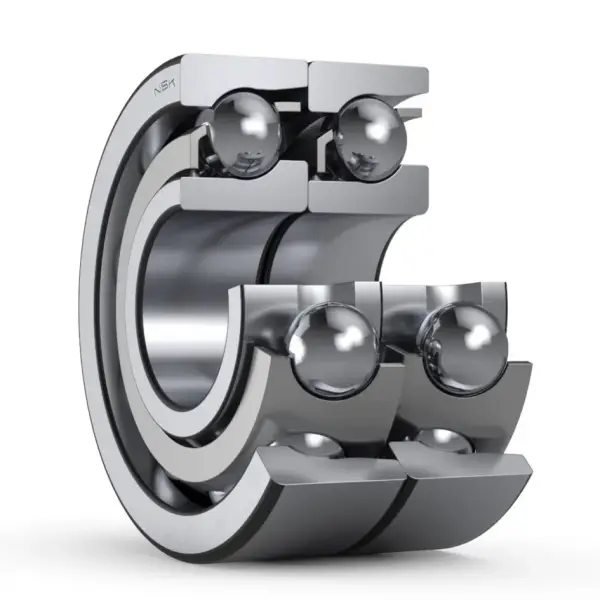

NSK 7212BWDT
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7212BWDT

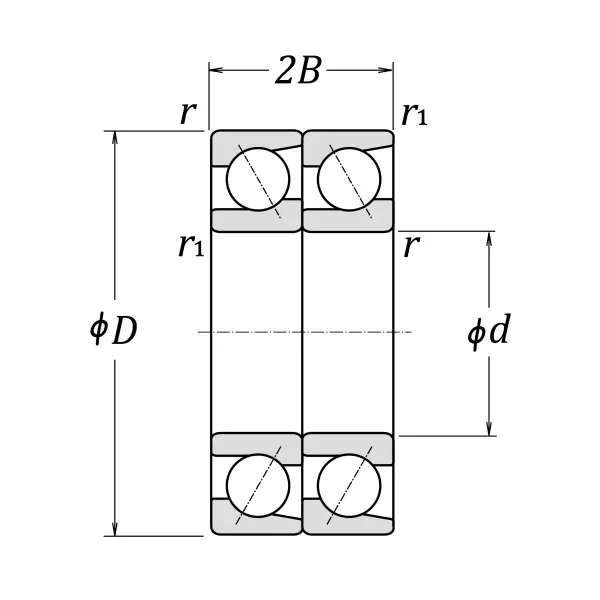

Boundary Dimensions
d
60
mm
Bore diameter
D
110
mm
Outside diameter
2B
44
mm
Width 2B
r (min.)
1.5
mm
Chamfer dimension
r1 (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
100000
N
Basic dynamic load rating
C0r
89000
N
Basic static load rating
Speeds
Grease
3000
min-1
Grease lubrication
Oil (Oil-bath)
4000
min-1
Oil-bath lubrication

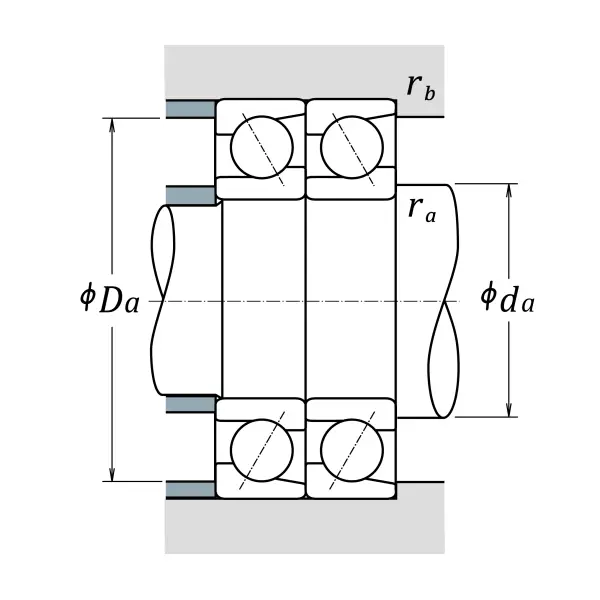

da (min.)
69
mm
Diameter of shaft abutment
Da (max.)
101
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
1.63
kg
Mass approx.
