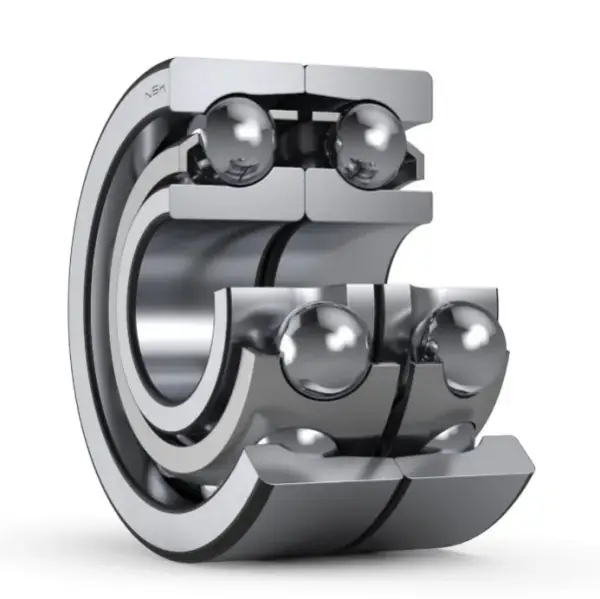

NSK 7218BWDF
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7218BWDF

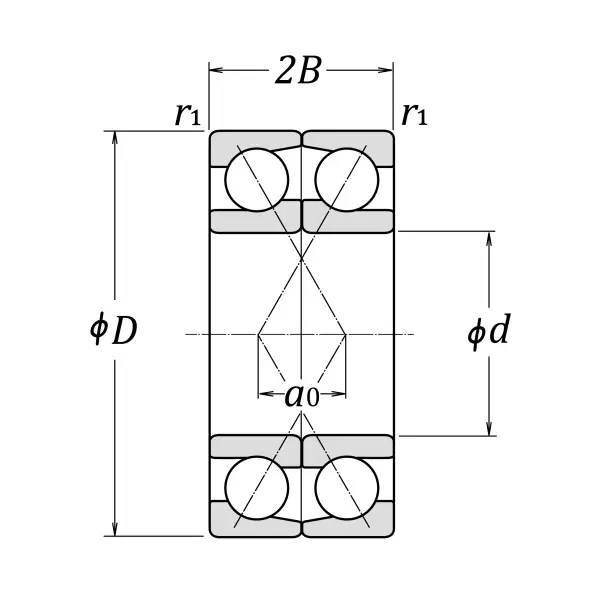

Boundary Dimensions
d
90
mm
Bore diameter
D
160
mm
Outside diameter
2B
60
mm
Width 2B
r (min.)
2
mm
Chamfer dimension
r1 (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
191000
N
Basic dynamic load rating
C0r
188000
N
Basic static load rating
Speeds
Grease
2000
min-1
Grease lubrication
Oil (Oil-bath)
2800
min-1
Oil-bath lubrication
a0
74.9
mm
Load center spacings

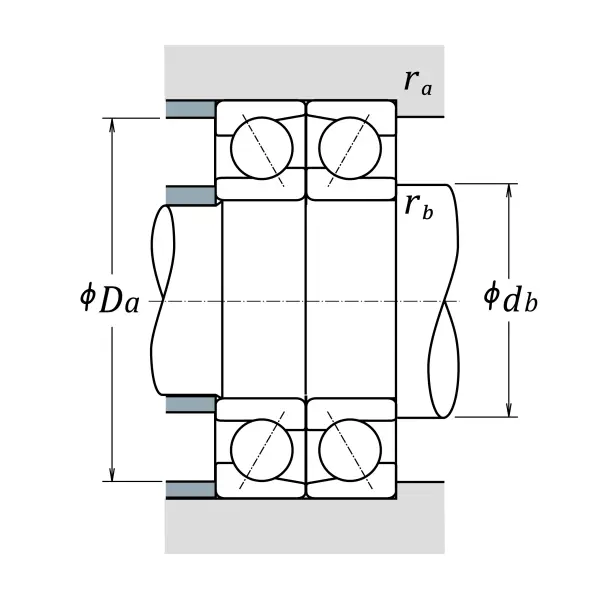

Dimensions
rb (max.)
1
mm
Radius of fillet
Da (max.)
150
mm
Diameter of housing abutment
db (min.)
96
mm
Diameter of shaft abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
