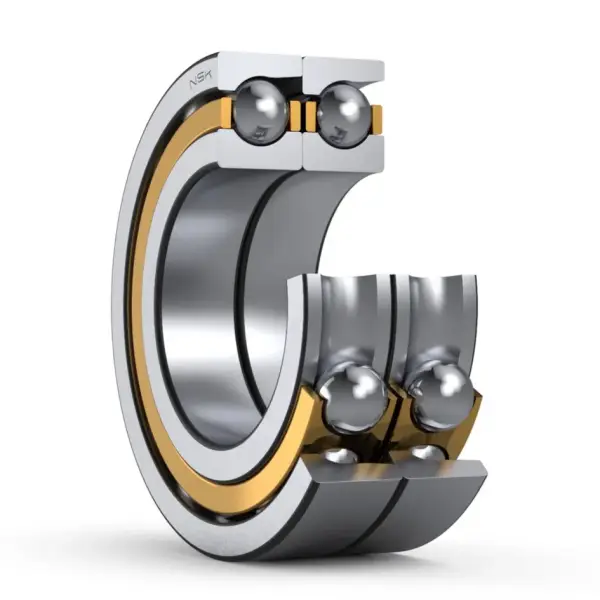

NSK 7228ADT
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
7228ADT
Boundary Dimensions
d
140
mm
Bore diameter
D
250
mm
Outside diameter
2B
84
mm
Width 2B
r (min.)
3
mm
Chamfer dimension
r1 (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
390000
N
Basic dynamic load rating
C0r
470000
N
Basic static load rating
Speeds
Grease
1800
min-1
Grease lubrication
Oil (Oil-bath)
2400
min-1
Oil-bath lubrication
da (min.)
154
mm
Diameter of shaft abutment
Da (max.)
236
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
17.84
kg
Mass approx.
