NSK 7232ADB

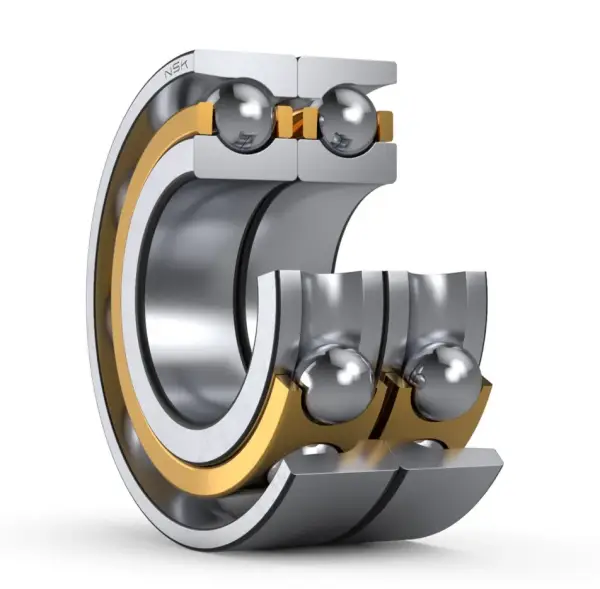

Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7232ADB
Boundary Dimensions
d
160
mm
Bore diameter
D
290
mm
Outside diameter
2B
96
mm
Width 2B
r (min.)
3
mm
Chamfer dimension
r1 (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
470000
N
Basic dynamic load rating
C0r
615000
N
Basic static load rating
Speeds
Grease
1500
min-1
Grease lubrication
Oil (Oil-bath)
2000
min-1
Oil-bath lubrication
a0
177.9
mm
Load center spacings
Dimensions
da (min.)
174
mm
Diameter of shaft abutment
rb (max.)
1
mm
Radius of fillet
Db (max.)
283
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
