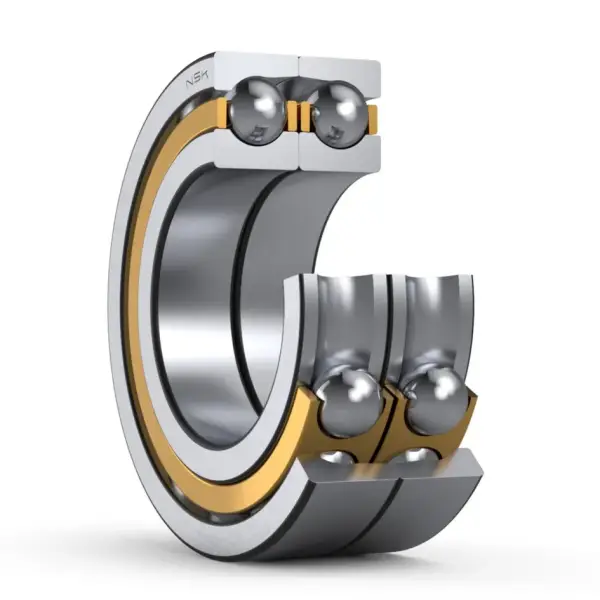

NSK 7232BDF
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7232BDF
Boundary Dimensions
d
160
mm
Bore diameter
D
290
mm
Outside diameter
2B
96
mm
Width 2B
r (min.)
3
mm
Chamfer dimension
r1 (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
425000
N
Basic dynamic load rating
C0r
555000
N
Basic static load rating
Speeds
Grease
1400
min-1
Grease lubrication
Oil (Oil-bath)
1900
min-1
Oil-bath lubrication
a0
140.8
mm
Load center spacings
Dimensions
rb (max.)
2.5
mm
Radius of fillet
Da (max.)
276
mm
Diameter of housing abutment
db (min.)
174
mm
Diameter of shaft abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
