NSK 7232BDT

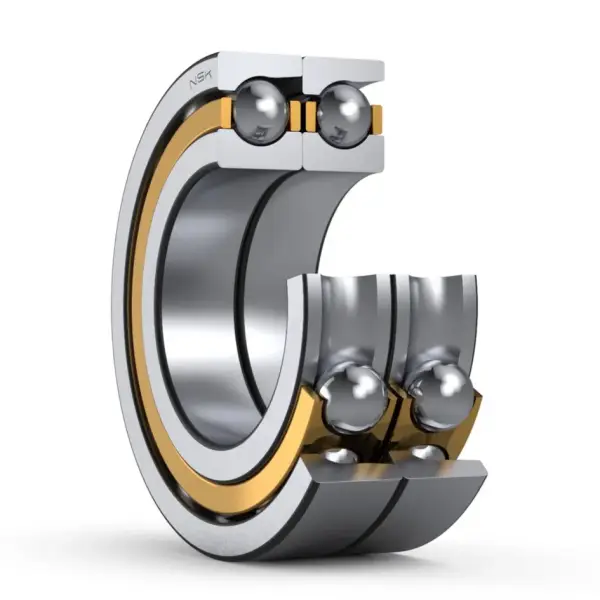

Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7232BDT
Boundary Dimensions
d
160
mm
Bore diameter
D
290
mm
Outside diameter
2B
96
mm
Width 2B
r (min.)
3
mm
Chamfer dimension
r1 (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
425000
N
Basic dynamic load rating
C0r
555000
N
Basic static load rating
Speeds
Grease
1400
min-1
Grease lubrication
Oil (Oil-bath)
1900
min-1
Oil-bath lubrication
da (min.)
174
mm
Diameter of shaft abutment
Da (max.)
276
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
28.4
kg
Mass approx.
