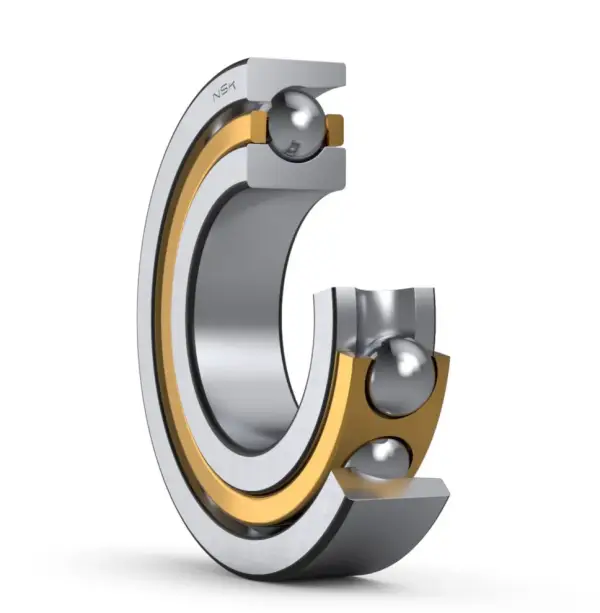

NSK 7236A
Standard Series High Precision Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
7236A

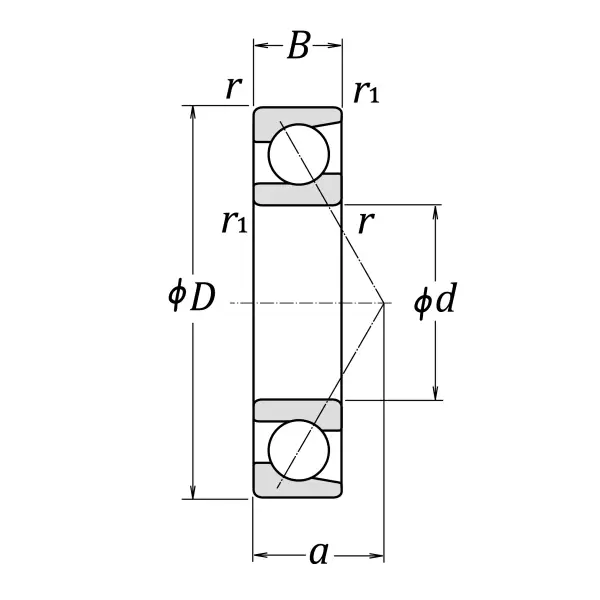

Boundary Dimensions
d
180
mm
Bore diameter
D
320
mm
Outside diameter
B
52
mm
Width
r(min.)
4
mm
Chamfer Dimension
r1(min.)
1.5
mm
Chamfer Dimension
Basic Load Ratings
Cr
385
kN
Basic Dynamic Load Rating
C0r
385
kN
Basic Static Load Rating
Speeds
Grease
2600
min-1
Limiting Speed
Oil (Oil-air)
3600
min-1
Limiting Speed
Dimensions
A: 30°
Contact Angle
a
98.2
mm
Effective Load Center

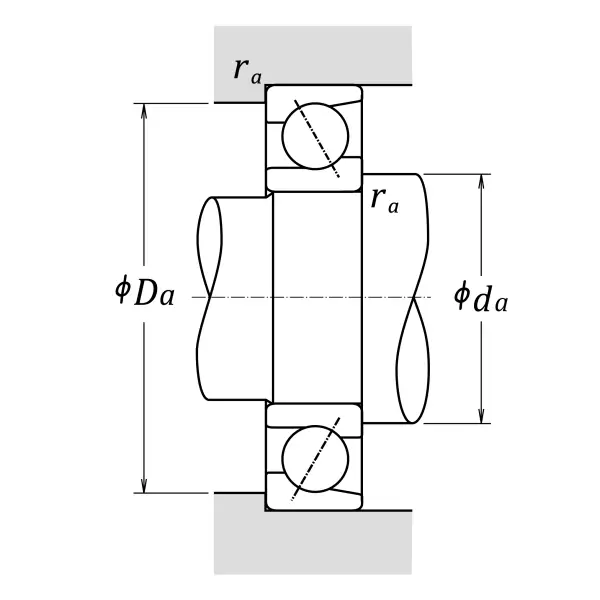

Abutment and Fillet Dimensions
da(min.)
198
mm
Diameter of Shaft Abutment
Da(max.)
302
mm
Diameter of Housing Abutment
Db(max.)
311
mm
Diameter of Housing Abutment
ra(max.)
3
mm
Radius of Shaft or Housing Fillet
rb(max.)
1.5
mm
Radius of Shaft or Housing Fillet
