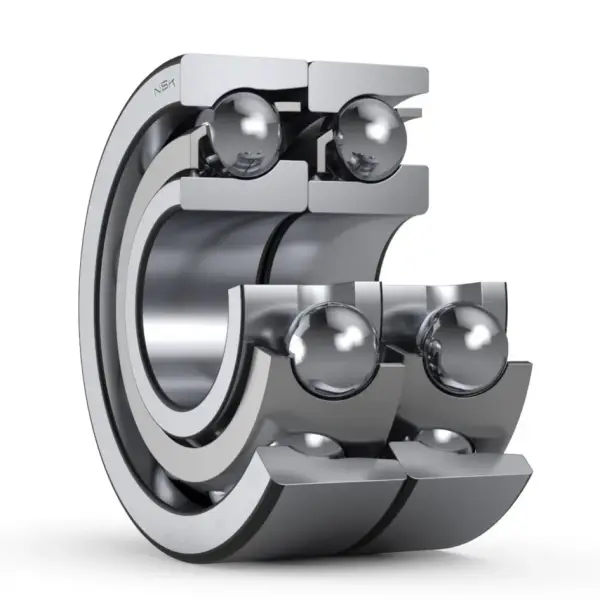

NSK 7307AWDT
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
7307AWDT
Boundary Dimensions
d
35
mm
Bore diameter
D
80
mm
Outside diameter
2B
42
mm
Width 2B
r (min.)
1.5
mm
Chamfer dimension
r1 (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
71500
N
Basic dynamic load rating
C0r
52500
N
Basic static load rating
Speeds
Grease
5000
min-1
Grease lubrication
Oil (Oil-bath)
6700
min-1
Oil-bath lubrication
da (min.)
44
mm
Diameter of shaft abutment
Da (max.)
71
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
0.928
kg
Mass approx.
