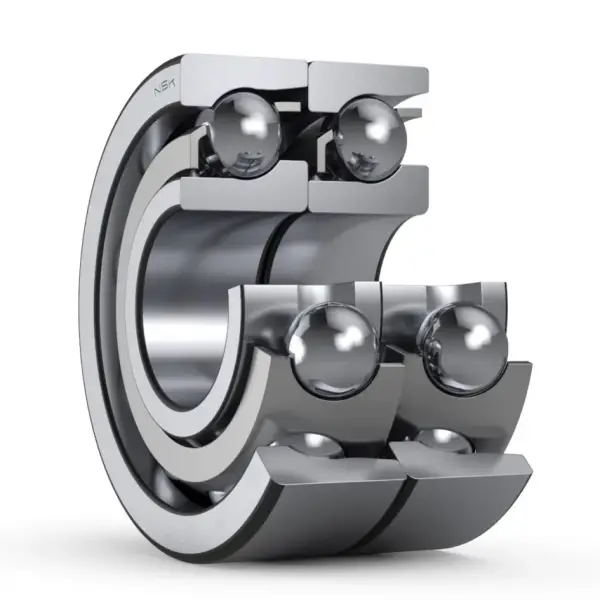

NSK 7308AWDT
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7308AWDT
Boundary Dimensions
d
40
mm
Bore diameter
D
90
mm
Outside diameter
2B
46
mm
Width 2B
r (min.)
1.5
mm
Chamfer dimension
r1 (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
87000
N
Basic dynamic load rating
C0r
66000
N
Basic static load rating
Speeds
Grease
4500
min-1
Grease lubrication
Oil (Oil-bath)
6000
min-1
Oil-bath lubrication
da (min.)
49
mm
Diameter of shaft abutment
Da (max.)
81
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
1.266
kg
Mass approx.
