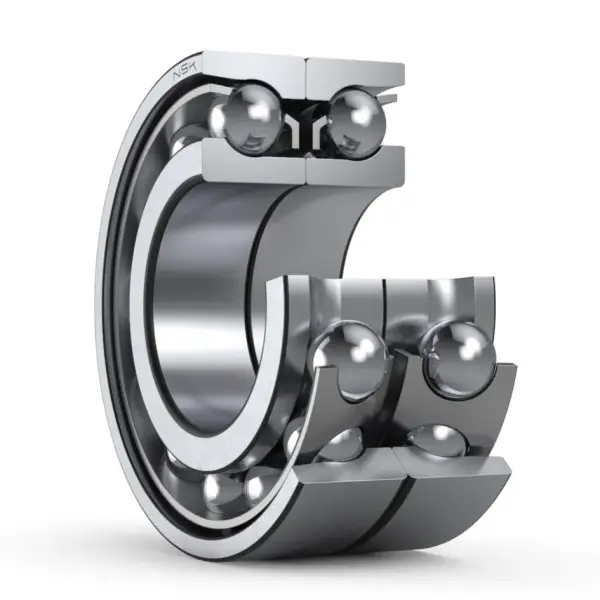

NSK 7309AWDB
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
7309AWDB

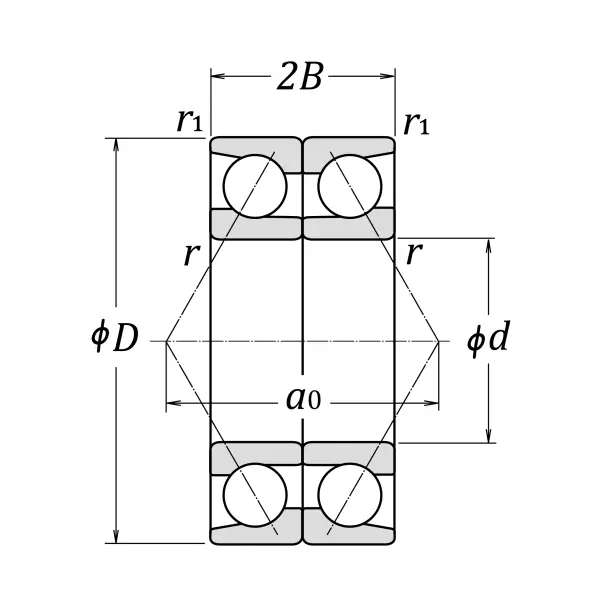

Boundary Dimensions
d
45
mm
Bore diameter
D
100
mm
Outside diameter
2B
50
mm
Width 2B
r (min.)
1.5
mm
Chamfer dimension
r1 (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
113000
N
Basic dynamic load rating
C0r
87000
N
Basic static load rating
Speeds
Grease
4000
min-1
Grease lubrication
Oil (Oil-bath)
5300
min-1
Oil-bath lubrication
a0
66.9
mm
Load center spacings

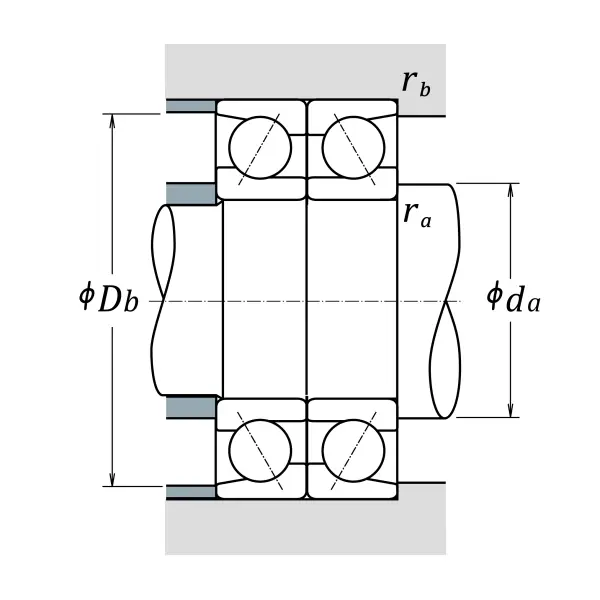

Dimensions
da (min.)
54
mm
Diameter of shaft abutment
rb (max.)
1
mm
Radius of fillet
Db (max.)
94
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
