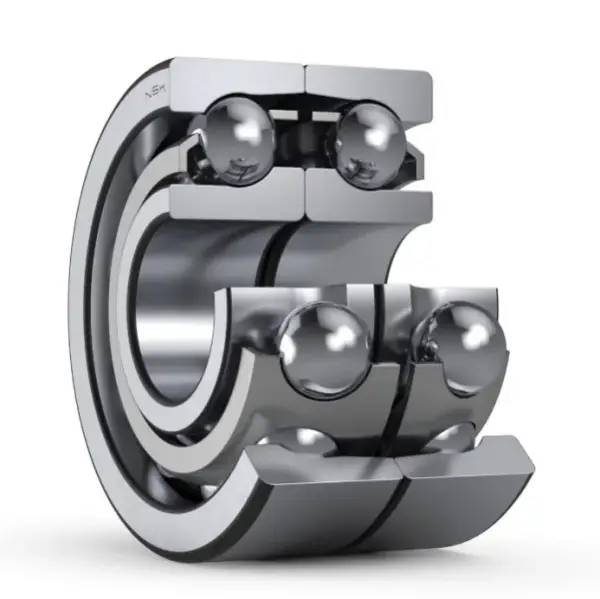

NSK 7309BWDF
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7309BWDF
Boundary Dimensions
d
45
mm
Bore diameter
D
100
mm
Outside diameter
2B
50
mm
Width 2B
r (min.)
1.5
mm
Chamfer dimension
r1 (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
104000
N
Basic dynamic load rating
C0r
80500
N
Basic static load rating
Speeds
Grease
3600
min-1
Grease lubrication
Oil (Oil-bath)
4800
min-1
Oil-bath lubrication
a0
35.8
mm
Load center spacings

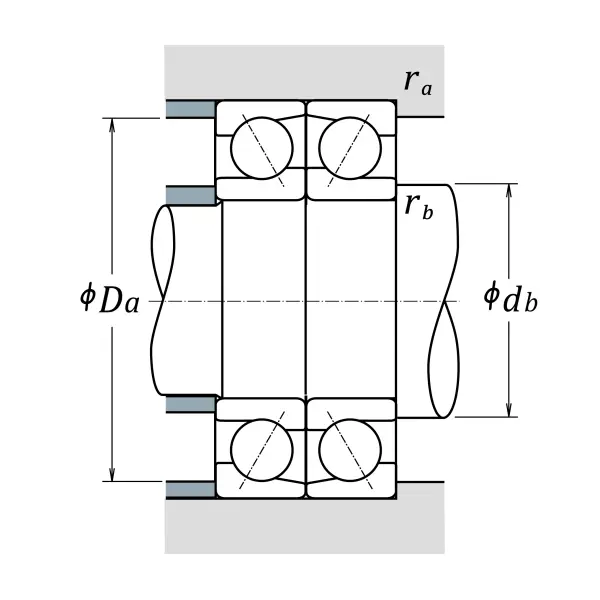

Dimensions
rb (max.)
1
mm
Radius of fillet
Da (max.)
91
mm
Diameter of housing abutment
db (min.)
51
mm
Diameter of shaft abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
