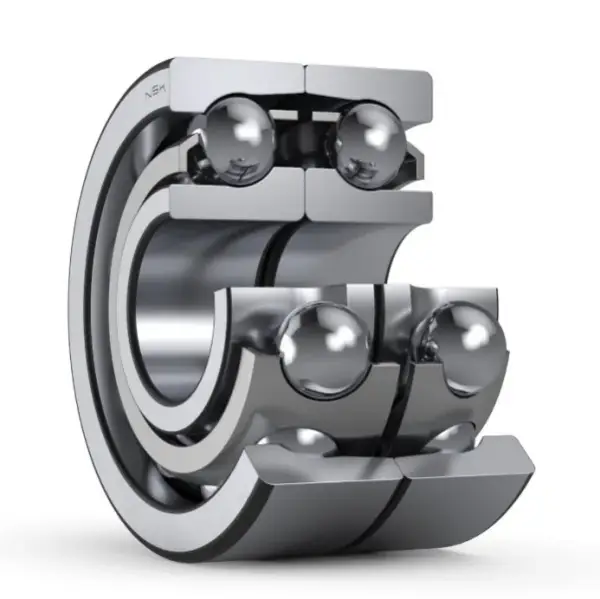

NSK 7316AWDF
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
7316AWDF

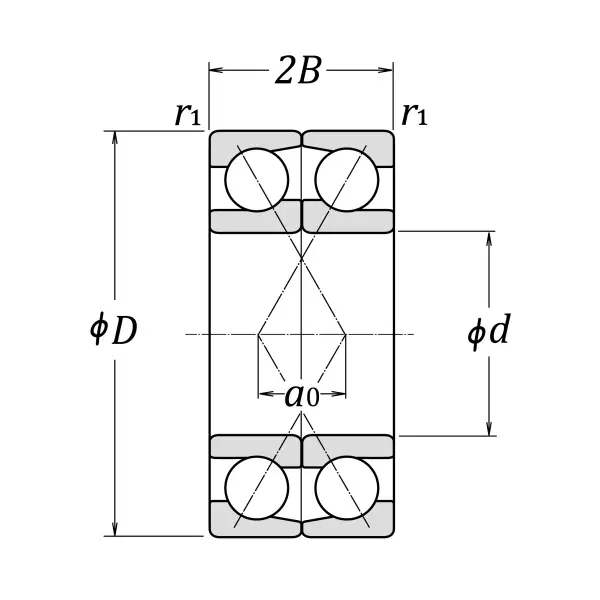

Boundary Dimensions
d
80
mm
Bore diameter
D
170
mm
Outside diameter
2B
78
mm
Width 2B
r (min.)
2.1
mm
Chamfer dimension
r1 (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
263000
N
Basic dynamic load rating
C0r
238000
N
Basic static load rating
Speeds
Grease
2200
min-1
Grease lubrication
Oil (Oil-bath)
3000
min-1
Oil-bath lubrication
a0
33.2
mm
Load center spacings

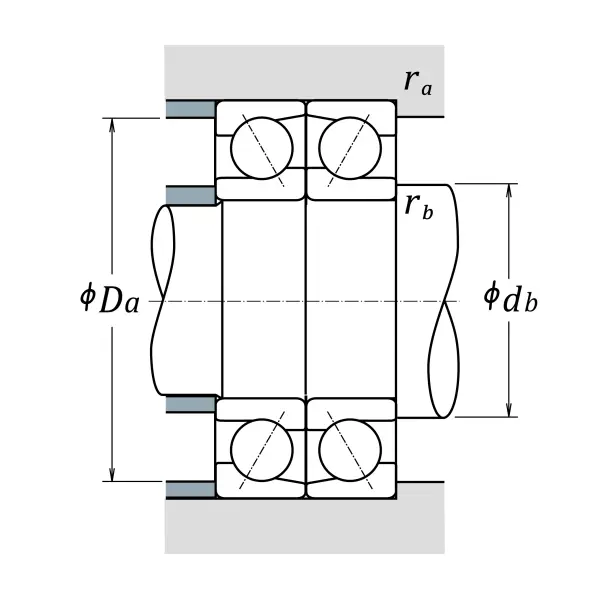

Dimensions
rb (max.)
1
mm
Radius of fillet
Da (max.)
158
mm
Diameter of housing abutment
db (min.)
87
mm
Diameter of shaft abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
