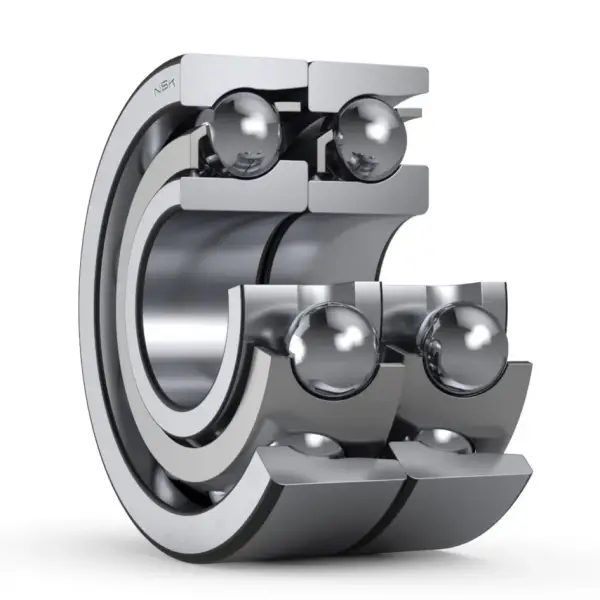

NSK 7318AWDT
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7318AWDT
Boundary Dimensions
d
90
mm
Bore diameter
D
190
mm
Outside diameter
2B
86
mm
Width 2B
r (min.)
3
mm
Chamfer dimension
r1 (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
305000
N
Basic dynamic load rating
C0r
294000
N
Basic static load rating
Speeds
Grease
2000
min-1
Grease lubrication
Oil (Oil-bath)
2800
min-1
Oil-bath lubrication
da (min.)
104
mm
Diameter of shaft abutment
Da (max.)
176
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
10.12
kg
Mass approx.
