NSK 7319BWDF
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
7319BWDF

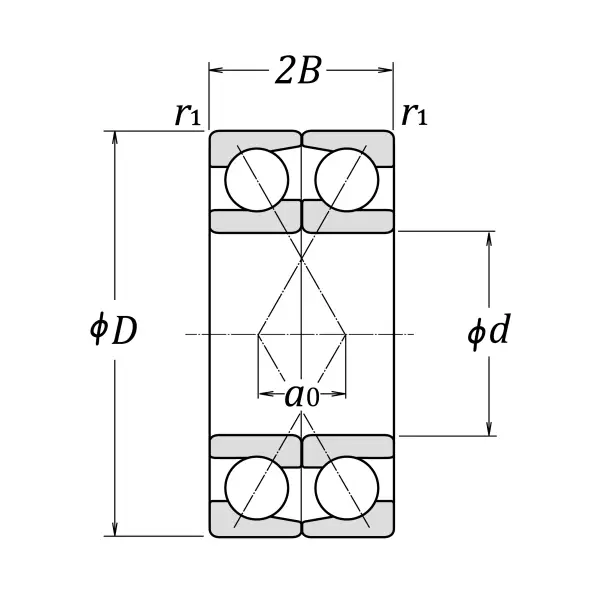

Boundary Dimensions
d
95
mm
Bore diameter
D
200
mm
Outside diameter
2B
90
mm
Width 2B
r (min.)
3
mm
Chamfer dimension
r1 (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
299000
N
Basic dynamic load rating
C0r
298000
N
Basic static load rating
Speeds
Grease
1700
min-1
Grease lubrication
Oil (Oil-bath)
2400
min-1
Oil-bath lubrication
a0
78.7
mm
Load center spacings

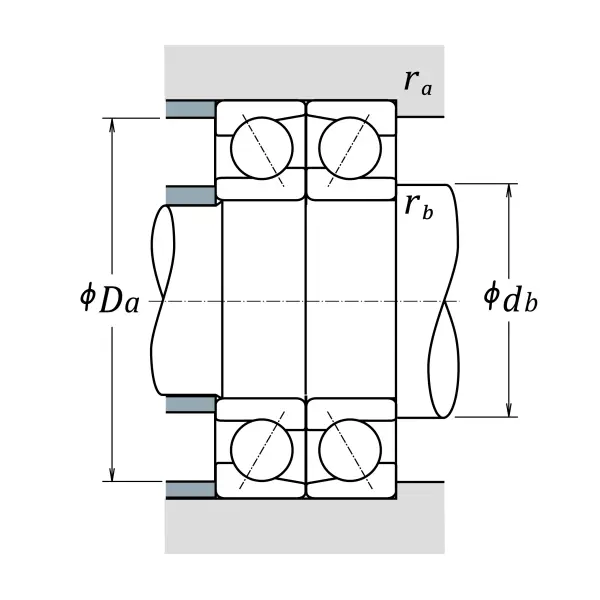

Dimensions
rb (max.)
1
mm
Radius of fillet
Da (max.)
186
mm
Diameter of housing abutment
db (min.)
102
mm
Diameter of shaft abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
